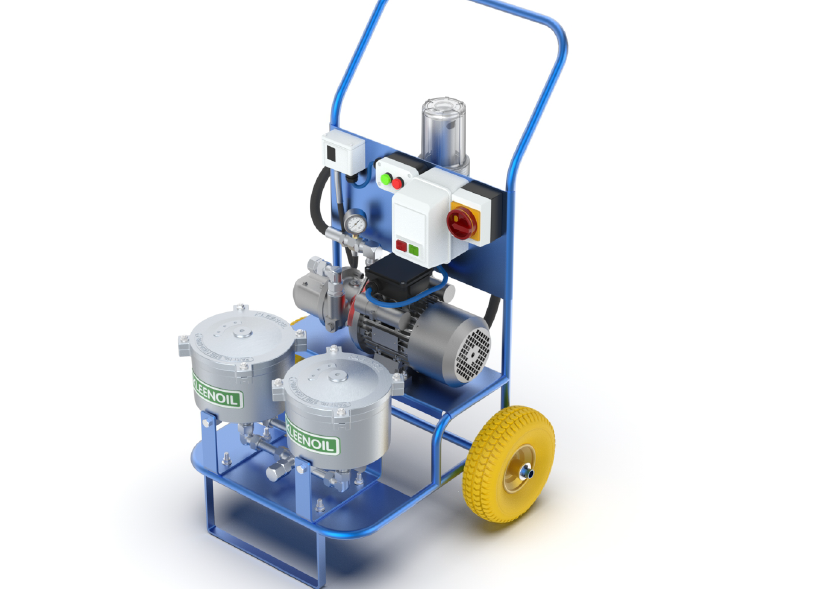

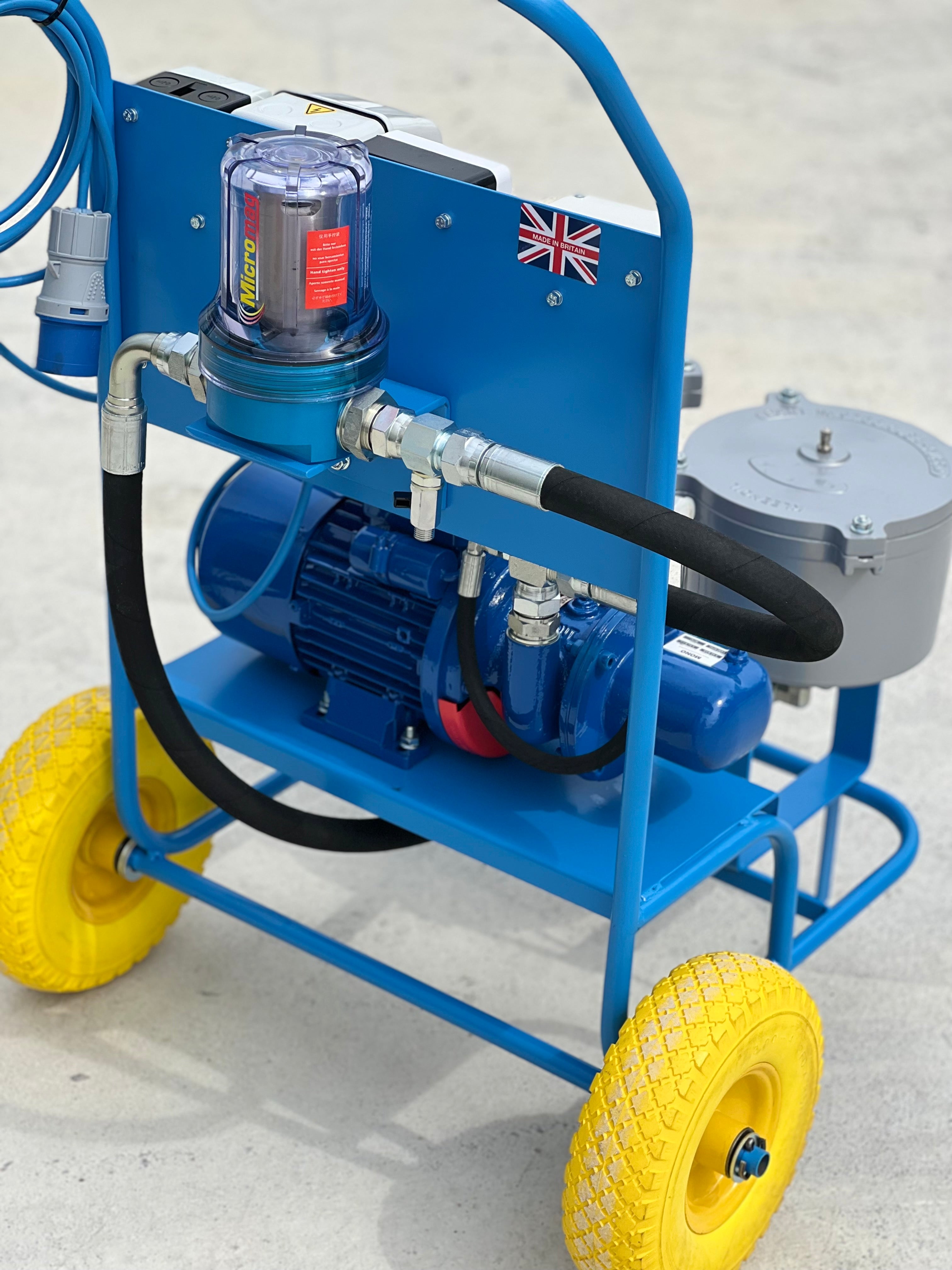

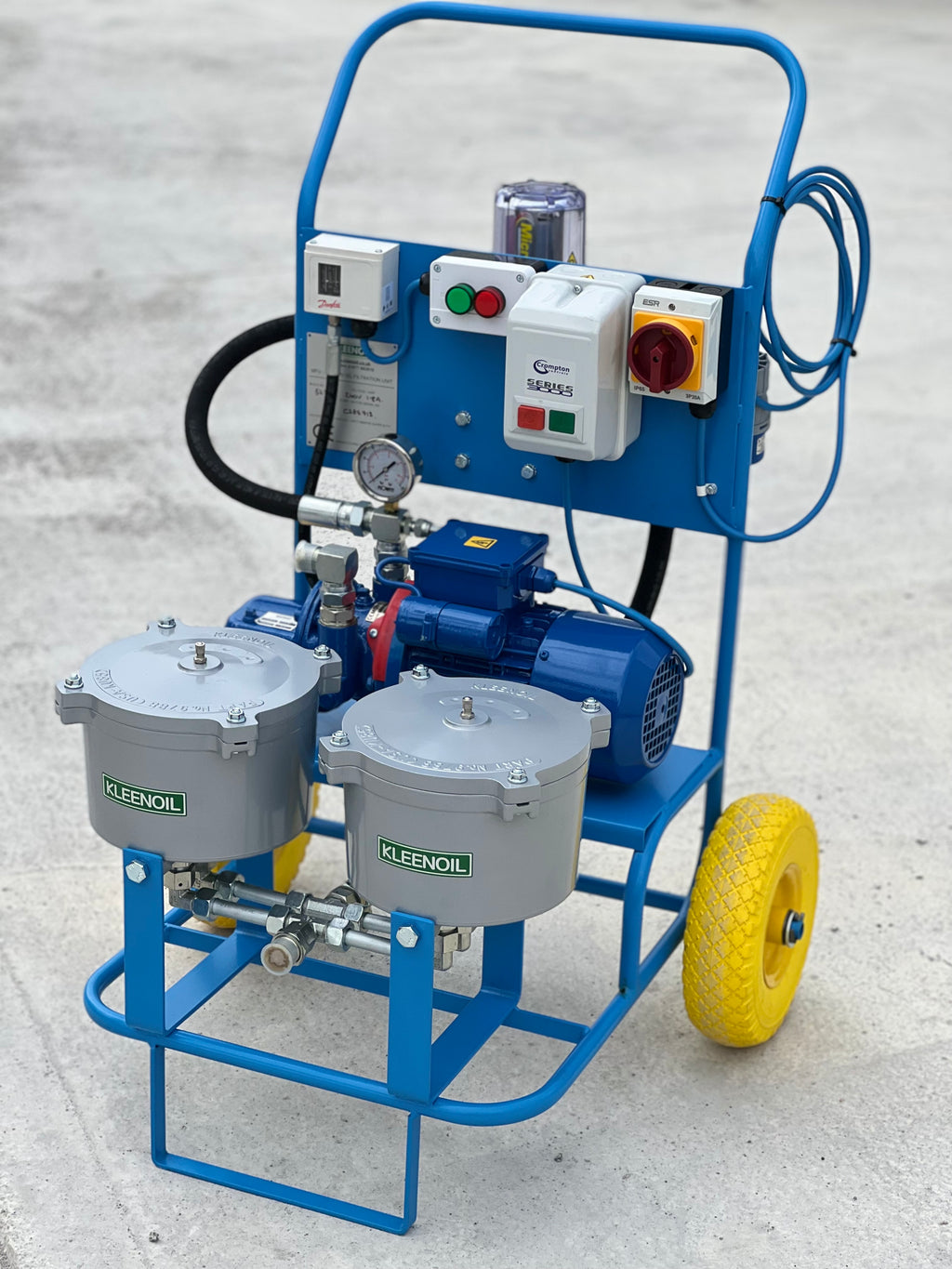

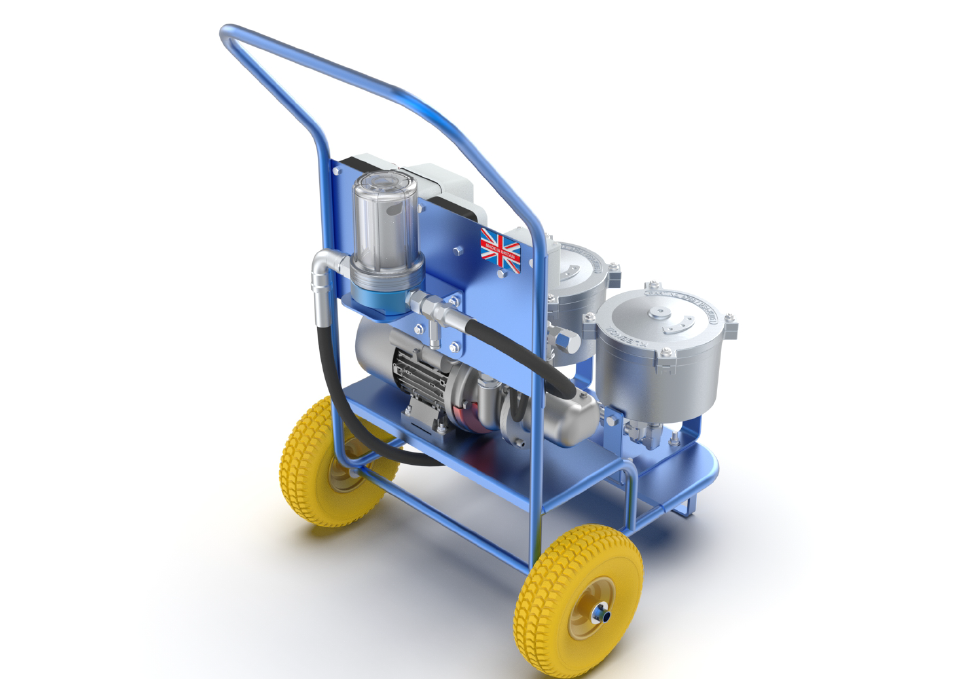

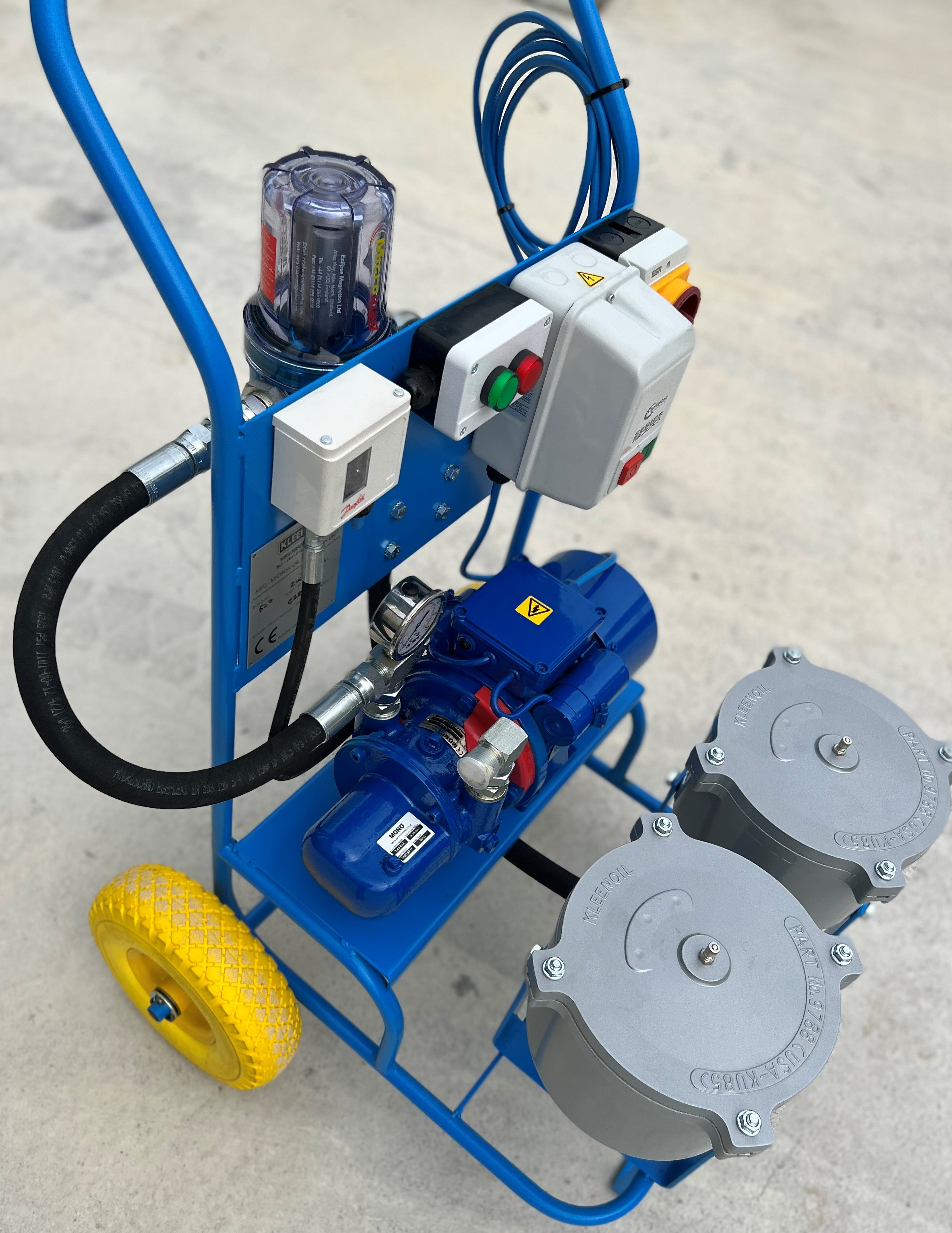

KLEENOIL MS2 Portable Oil Filtration Cart

Description

Mobile unit Suitable for servicing medium sizes tanks ideally to around 1000ltr.

• Height: 948 mm
• Width: 485 mm
• Depth: 654 mm
• Weight: 80kg
• Water Retention: 1560ml
• Flow rate: 500lph

Comes as standard with ‘240v progressive cavity pump/motor‘
(110v or 415v OPTIONAL EXTRA) call us to discuss options

🔹 Product Overview

The KLEENOIL MS2 Micron Filtration System (Cart Type) is a robust, portable off-line filtration unit designed for high-performance oil and fuel cleaning across a wide range of industrial applications. Built on a durable mobile chassis, this system offers maximum flexibility—allowing operators to service multiple machines, tanks, and systems with a single unit.

Engineered for reliability and ease of use, the MS2 delivers consistent, repeatable filtration performance, making it ideal for routine maintenance, emergency clean-ups, and pre-use oil conditioning.

🔹 Performance & Capability

Operating as an off-line filtration system, the MS2 continuously circulates oil through its twin filtration vessels, removing contamination without interrupting system operation.

Utilising KLEENOIL’s advanced cellulose depth filtration technology, the system:

• Removes particulate contamination down to 3 microns (absolute)
• Captures a wide range of particle sizes throughout the media
• Removes up to 99.95% of free and emulsified water
• Achieves oil cleanliness levels of ISO 4406 14/9 or better

The twin-filter configuration delivers flow rates of up to 500 litres per hour, making it suitable for cleaning tanks up to approximately 2000 litres, as well as fluid transfer and conditioning tasks.

🔹 How It Works

Unlike conventional surface filtration, KLEENOIL systems use cellulose depth filtration, trapping contaminants throughout the entire filter media rather than just on the surface.

This provides:

• Greater dirt-holding capacity
• Longer service intervals
• Superior removal of both fine particles and water contamination

The result is cleaner oil, extended equipment life, and improved system reliability.

🔹 Key Applications

• Hydraulic, gear & transmission reservoir cleaning
• Diesel fuel polishing and tank cleaning
• Oil transfer and fluid management
• Conditioning new oils prior to use
• Routine industrial maintenance and flushing
• Emergency contamination clean-up

🔹 Key Benefits

• Portable system for multi-site or multi-machine use
• Removes ultra-fine particles and water contamination
• Extends oil life and reduces replacement frequency
• Reduces wear, downtime, and maintenance costs
• Cleans and recycles oil in a closed-loop system
• Simple plug-and-play operation

🔹 System Features

• Twin filter vessel configuration for high-capacity filtration
• Heavy-duty mobile trolley design for easy transport
• Progressive cavity pump for handling heavily contaminated fluids
• Pressure gauge, bypass valve, and overload protection
• Sampling points for oil condition monitoring
• Supplied with 3m suction and return hoses
• Electric motor with isolator switch and status indicators

Designed for industrial use, the MS2 combines durability with operational simplicity, ensuring reliable performance in demanding environments.

🔹 Technical Highlights

• Filtration: 3 micron absolute (cellulose depth media)
• Flow Rate: Up to 500 LPH
• Water Removal: Up to 99.95% (free & emulsified)
• Tank Capacity: Suitable for systems up to ~2000L
• Construction: Heavy-duty steel frame
• Pump Type: Progressive cavity (heavy duty)
• Power: Electric motor
• System Type: Mobile off-line filtration cart

🔹 Quality & Build

Manufactured in the UK and built for industrial reliability, the MS2 system is supplied with full operating instructions, CE/UKCA compliance, and a 12-month parts warranty. Built-to-order with typical delivery of 5–10 working days.

KLEENOIL Manufacture - call us to discuss your application ; We not only adapt to suit your needs but offer a full support service to ensure you achieve the filtration cleanliness standard you need - and we can offer free trials to demonstrate the ability of the KLEENOIL System, - Tel U.K 44 (0) 1977 682810

🔹 How the Mobile Filtration System Works

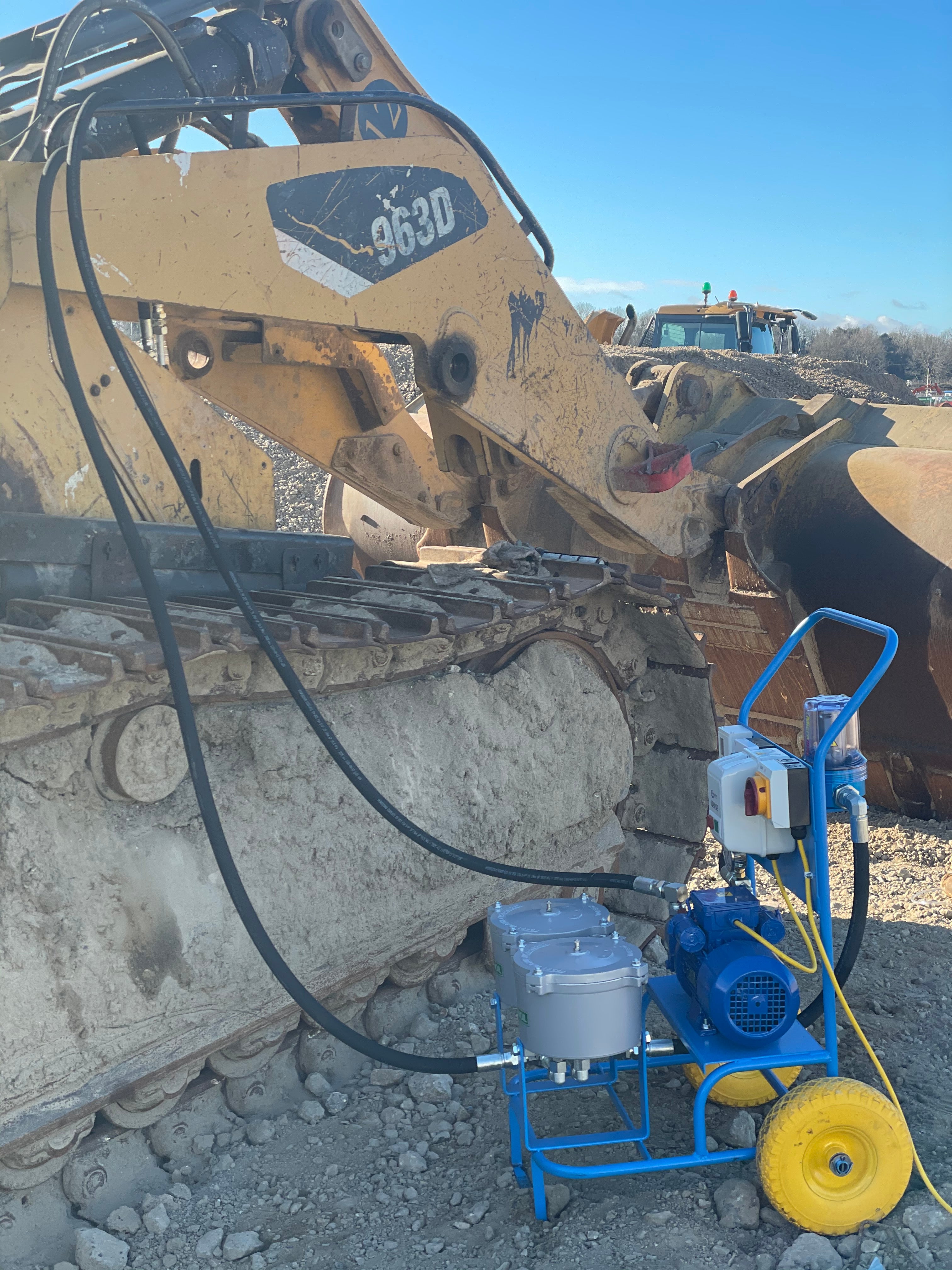

KLEENOIL mobile filtration systems are designed for simple, on-site operation, allowing you to quickly clean oil or fuel in tanks, IBCs, or machinery sumps.

At site:

• Position the unit as close as possible to the tank, IBC, or system
• Connect to a suitable power source (typically 240V)
• Place the feed hose into the tank (or connect to an available port – standard ¾")
• Position the return hose back into the tank, ideally as far from the feed point as practical to promote circulation

Once both hoses are submerged:

• Turn the isolator switch to ON
• Press the green start button
• Allow the system to prime—the filtration process begins immediately

The unit will continuously circulate and clean the oil. Run the system until the desired level of cleanliness is achieved. For best results, it is recommended to take a visual before-and-after sample to monitor improvement.

🔹 Maintenance & Servicing

• Cartridge changes: Follow the standard replacement procedure (see “Filter Replacement” section above)

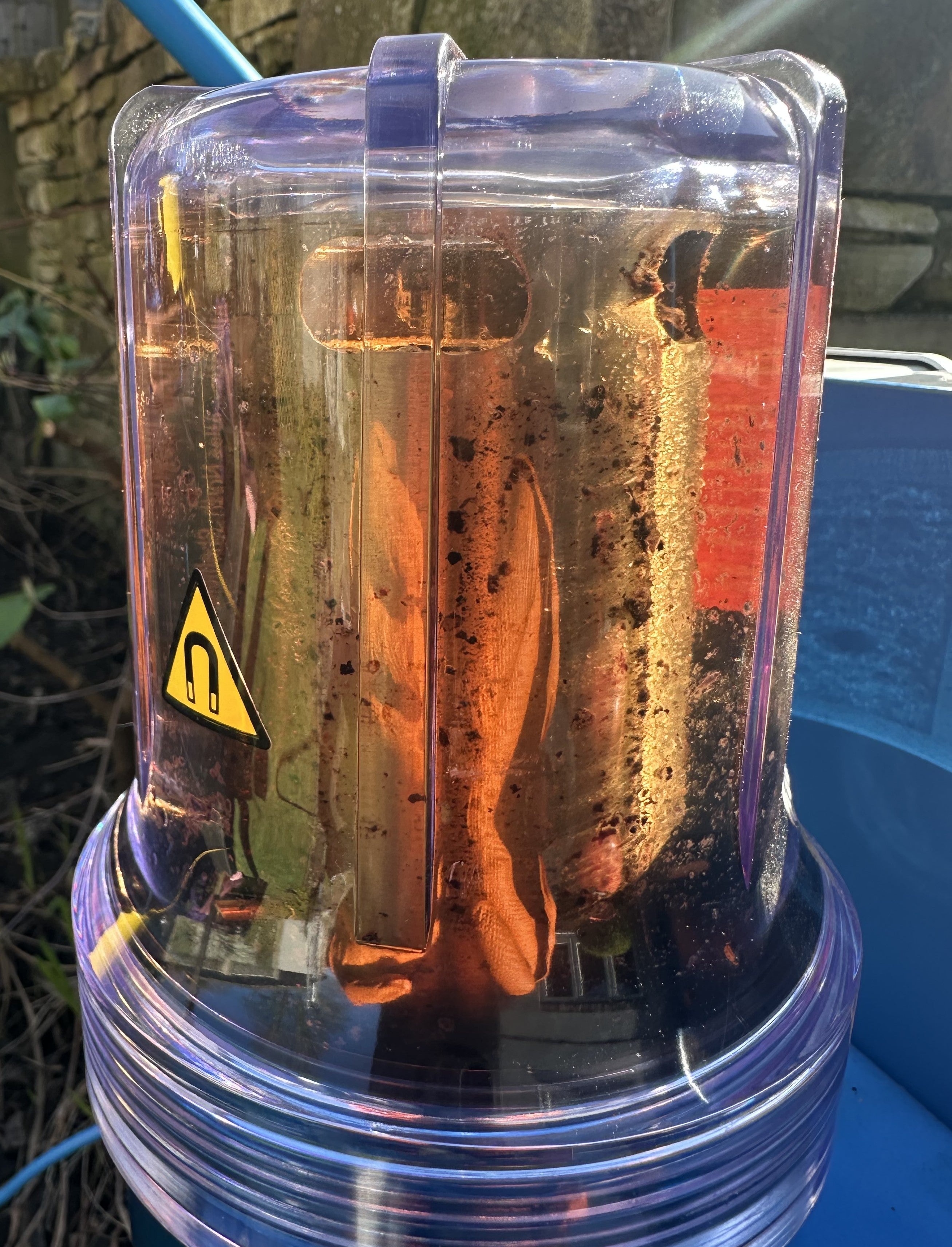

• Micromag: Periodically wipe clean during cartridge changes
• General operation: The system is designed to be low maintenance and trouble-free
