Small system. Big protection. Proven performance.
Ultra-compact filtration for engines and systems up to 6 litres.
Continuous oil cleaning with minimal space required.

• Suitable for engines of up to 6 litres oil
• Max input pressure 2-6 Bar
• Screw seal lid
• Height: 160mm
• Diameter: 90mm
• Weight: 2.25k
• Water Retention: 110ml
• Supplied with 1x MDFC1858kf06 Replacement Filter Cartridge
• Complete with bracket mounting kit

🔹 Why You Need This System

Even in the smallest systems, oil contamination is a major cause of wear and inefficiency. Fine particles and moisture quickly degrade oil performance, leading to increased component wear and unnecessary maintenance.

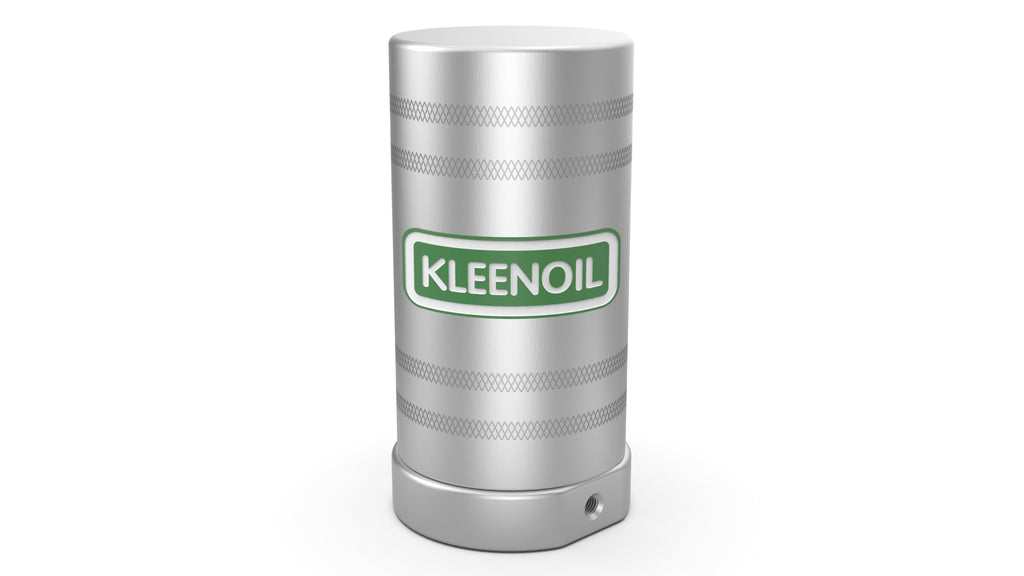

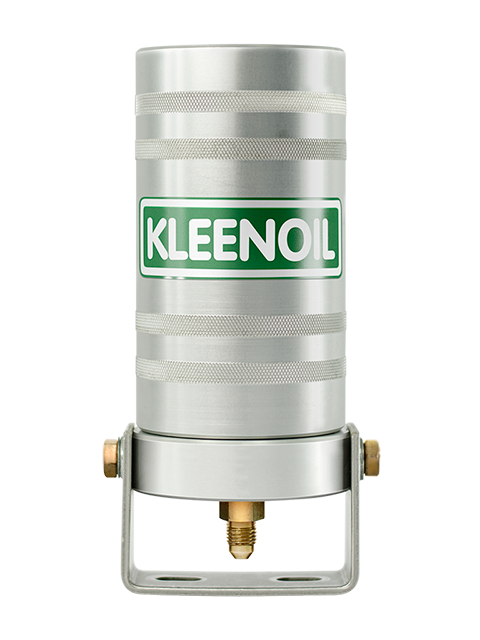

The KLEENOIL MDU9758KU06 Micro Duty By-Pass Filtration Unit is specifically designed for compact systems, continuously removing contamination and water while the equipment is running. This ensures oil remains in near “as new” condition, extending service life and improving reliability in even the smallest applications.

🔹 Where It’s Used

The MDU9758KU06 is ideal for very small systems and compact installations, including:

• Small engines (up to approx. 6 litre sump capacity)
• Compact hydraulic systems
• Small gearboxes and transmissions
• Portable and mobile equipment
• Generators and compressors

Its compact size makes it perfect where space is limited but oil cleanliness is still critical.

🔹 How It Works

The unit operates as a bypass filtration system, continuously cleaning oil without interrupting system operation.

• A small volume of oil is taken from the system
• Oil passes slowly through a high-efficiency cellulose filter
• Contamination and water are removed
• Clean oil is returned back to the system

This controlled process enables 3 micron absolute filtration and removes up to 99.9% of water, helping maintain optimal oil condition and extend service intervals.

🔹 Key Benefits

• Removes particles down to 3 micron absolute
• Removes 99.9% water (free, emulsified, dissolved)
• Extends oil life by up to 5x
• Reduces wear, downtime, and maintenance costs
• Improves efficiency and reliability of small systems
• Ultra-compact design for tight installations

🔹 Installation (Simple & Non-Intrusive)

The MDU9758KU06 is designed for quick, straightforward installation into existing systems.

The system is installed using:

• A pressure feed (inlet) from a low-pressure point
• A low-pressure return (outlet) back to the tank or sump

Typical setup:

1. Feed Line (Pressure Side)

• Take from an oil gallery, auxiliary port, or low-pressure hydraulic point

2. Return Line (Low Pressure)

• Return to sump, tank, or filler point
• Typically via dipstick or return fitting

3. Mounting

• Install vertically using the supplied bracket
• Keep hose runs short and direct
• Ensure easy access for servicing

Important: Always use a low-pressure feed. For hydraulic systems, a pressure reducing valve (PRV) may be required.

🔹 Technical Highlights

• Filtration: 3 micron absolute
• Flow Rate: 120–250 L/h
• Water Capacity: Approx. 110ml per cartridge
• Operating Temperature: -20°C to +120°C
• Construction: Aluminium LM6 housing
• System Type: Continuous bypass filtration
• Replacement Filter: MDFC1858KF06

🔹 Support & Application Advice

KLEENOIL UK provides a complete support service, working with you to identify the most effective filtration solution for your application. Our goal is simple—deliver consistently clean oil and long-term system performance.

Speak to our team directly on +44 (0) 1977 682810 for tailored advice.
