🔹Detail

Suitable for engines of up to 80 litres oil

• Max input pressure 2-6 Bar
• Lid torque pressure 18ft lbs. 4 bolt seal
• Height: 165mm
• Diameter: 220mm
• Weight: 5.45k
• Water Retention: 780ml
• Supplied with 1x SDFC1888kf85 Replacement Filter Cartridge

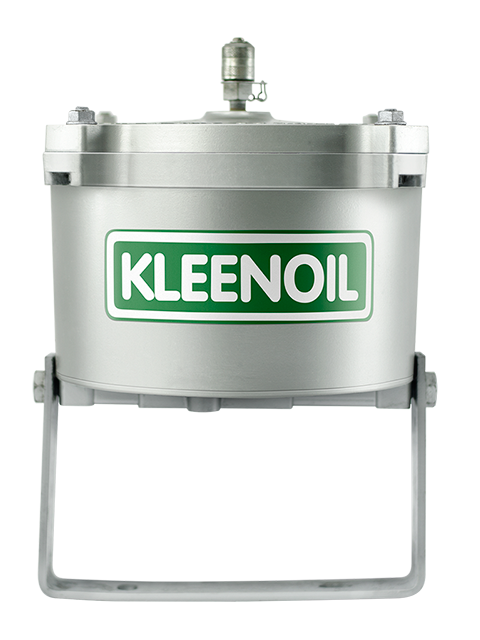

• Complete with bracket mounting kit


🔹 Why You Need This System

Modern oil systems don’t fail because of the oil—they fail because of contamination.

Particles, moisture, and degradation products continuously build up during operation, leading to:

• Increased wear on components
• Reduced efficiency
• Unplanned downtime
• Premature oil replacement

The KLEENOIL SDU9788KU85 By-Pass Filtration Unit is designed to solve this problem at the source. By continuously removing contamination and water while the system is running, it keeps oil in “as new” condition, significantly extending oil life and protecting your equipment.

🔹 Where It’s Used

The system is designed for versatile use across both industrial and mobile applications, including:

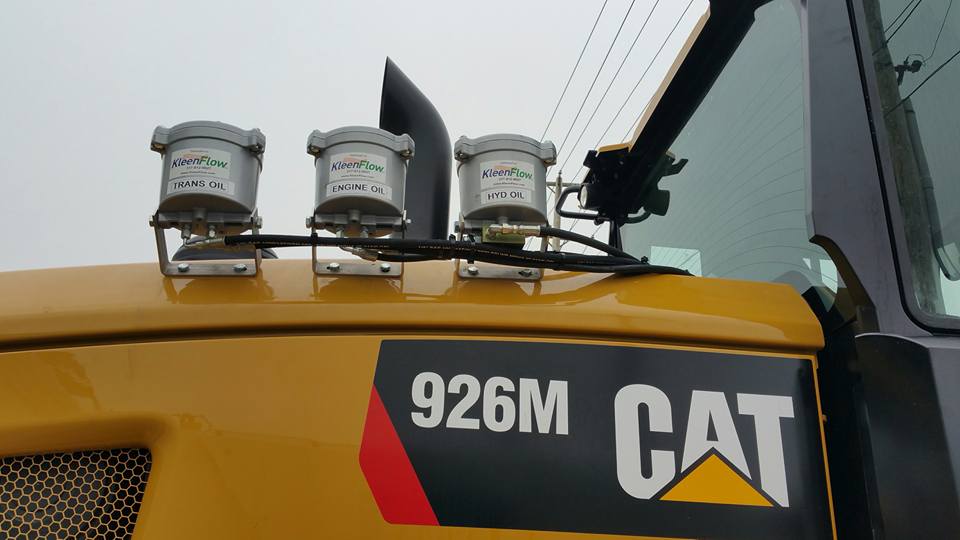

• Engines (on-road, off-road, marine)

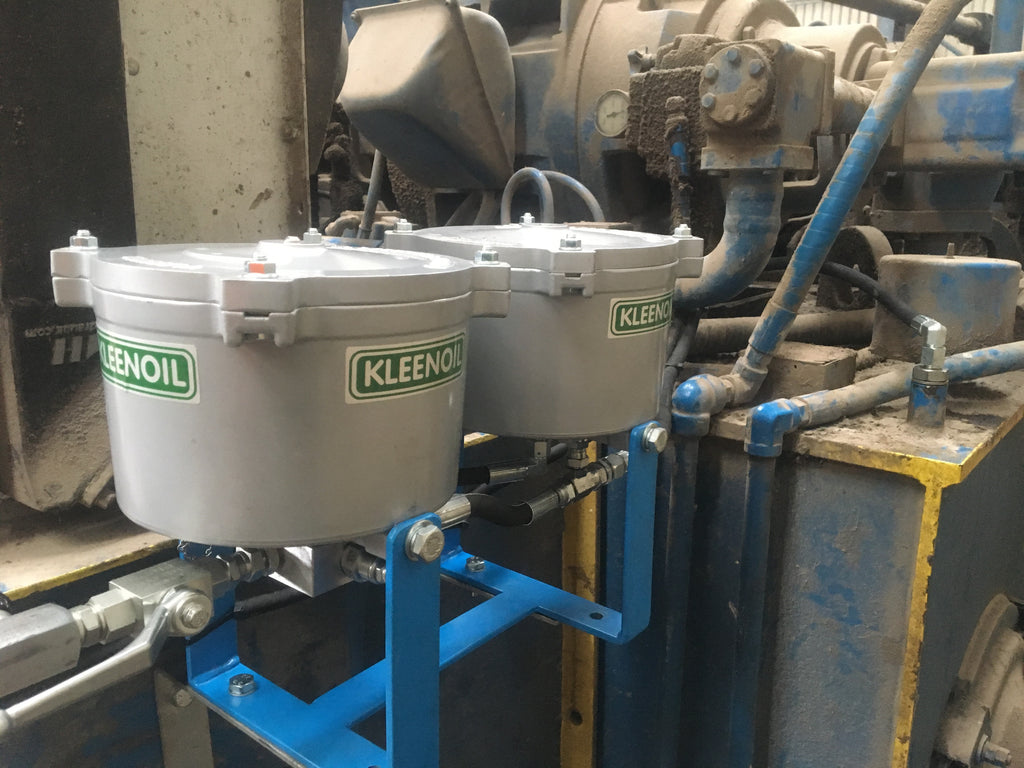

• Hydraulic systems and power packs
• Gearboxes and transmissions
• Generators and compressors
• Diesel fuel systems and storage tanks

Wherever oil cleanliness is critical to performance and reliability, the KLEENOIL system provides continuous protection.

🔹 How It Works

The SDU9788KU85 operates as a bypass filtration system, meaning it filters a small proportion of oil continuously without interrupting the main system operation.

• A controlled flow of oil is taken from the system
• Oil passes slowly through a high-efficiency cellulose filter
• Contaminants and water are removed
• Clean oil is returned back to the system

Because the process is slow and controlled, it achieves ultra-fine filtration down to 3 microns and removes up to 99.9% of water, all without affecting system pressure or performance.

🔹 Key Benefits

• Removes particles down to 3 micron absolute
• Removes 99.9% water (free, emulsified, dissolved)
• Extends oil life by up to 5x
• Reduces wear, downtime, and maintenance costs
• Improves system reliability and efficiency
• Suitable for oil and diesel fuel applications

🔹 Installation (Simple & Non-Intrusive)

Installation is straightforward and designed to integrate easily into existing systems.

The unit is installed using:

• A pressure feed (inlet) taken from a low-pressure point in the system
• A low-pressure return (outlet) back to the tank, sump, or reservoir

Typical setup:

1. Feed Line (Pressure Side)
   Take a feed from an available port:
   • Engine oil gallery or auxiliary port
   • Hydraulic test point or low-pressure line
2. Return Line (Low Pressure)
   Return the filtered oil back to:
   • Tank or reservoir
   • Filler cap / dipstick return (engines)
   • Low-pressure return line (hydraulics)

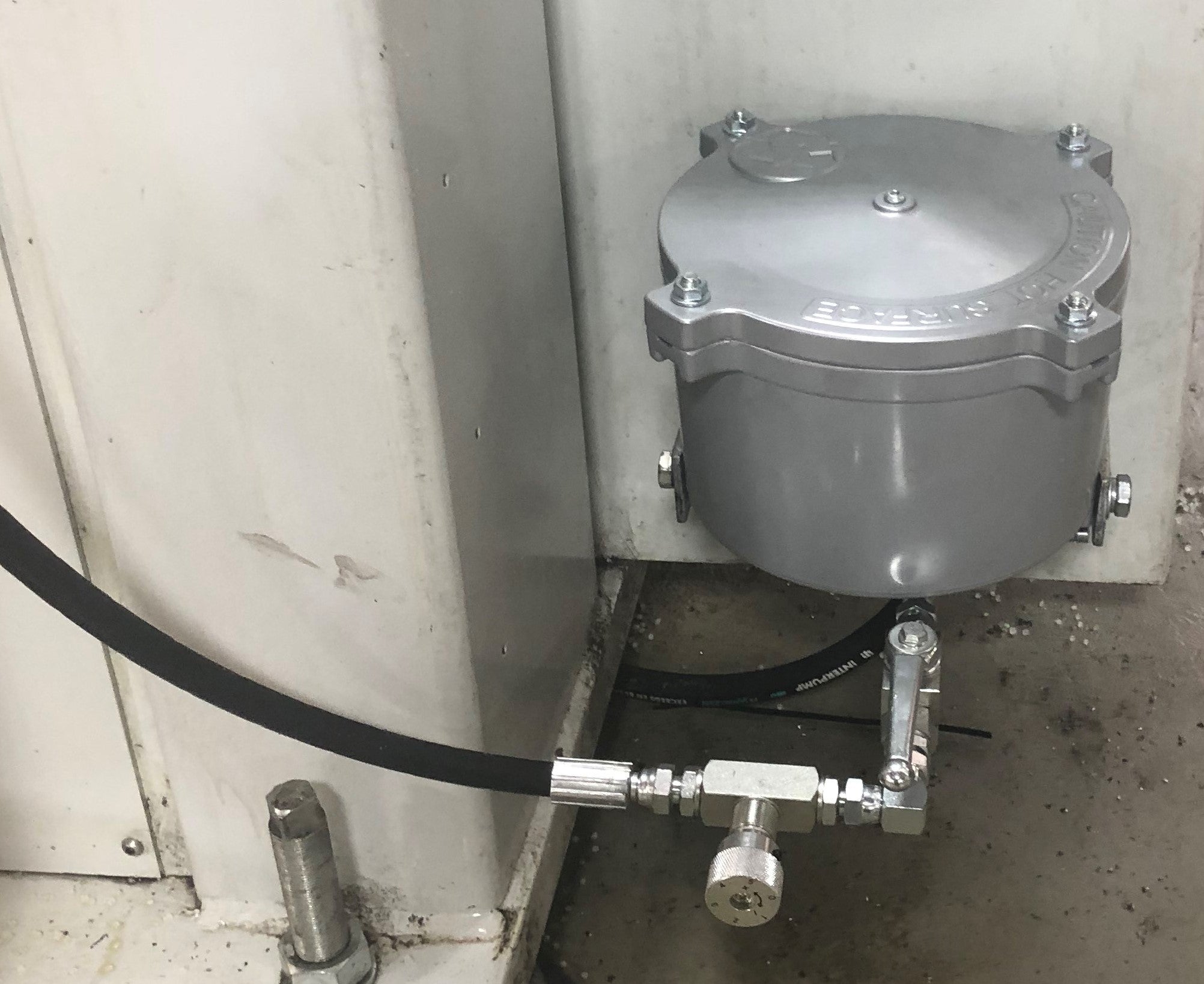

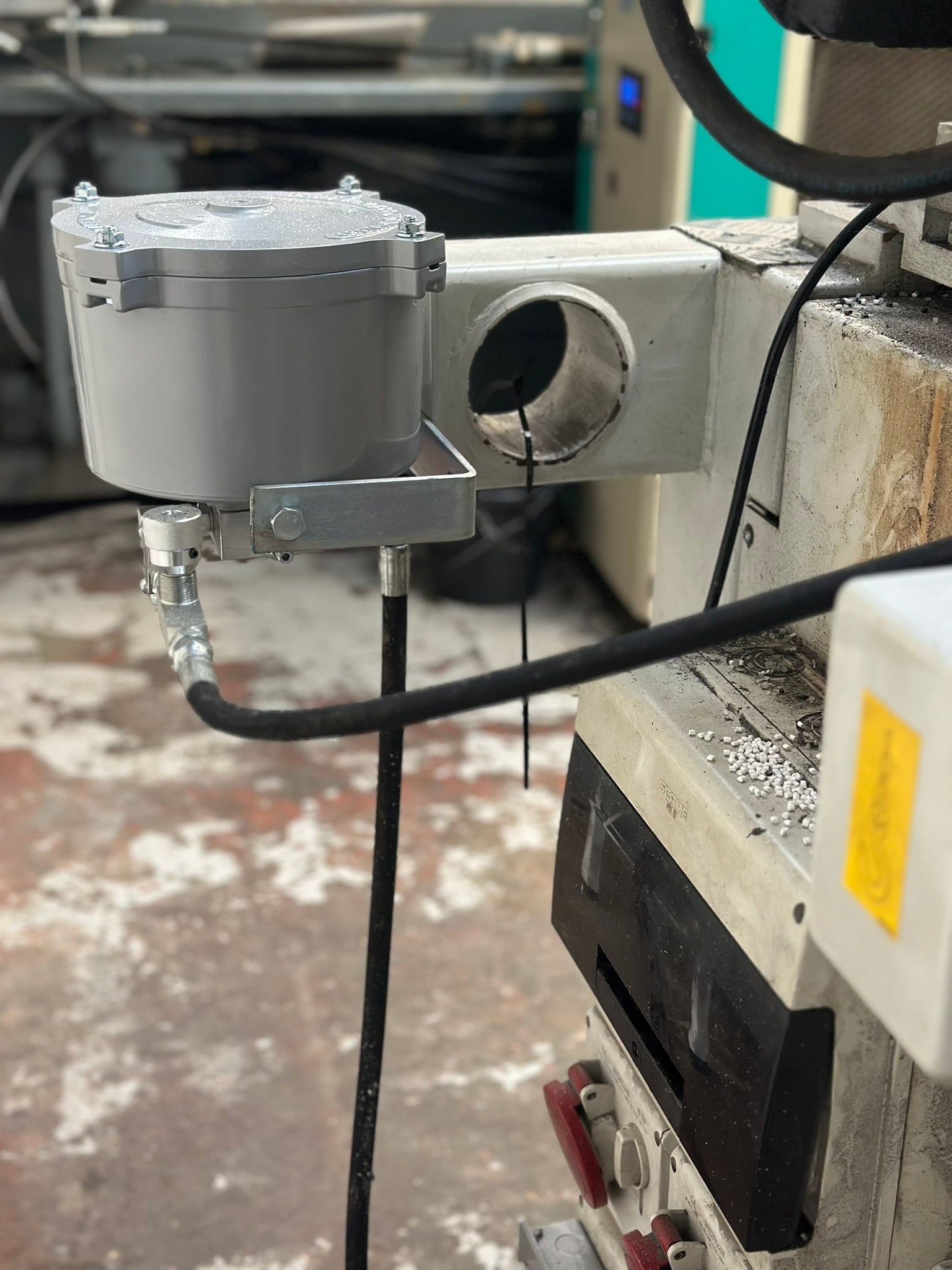

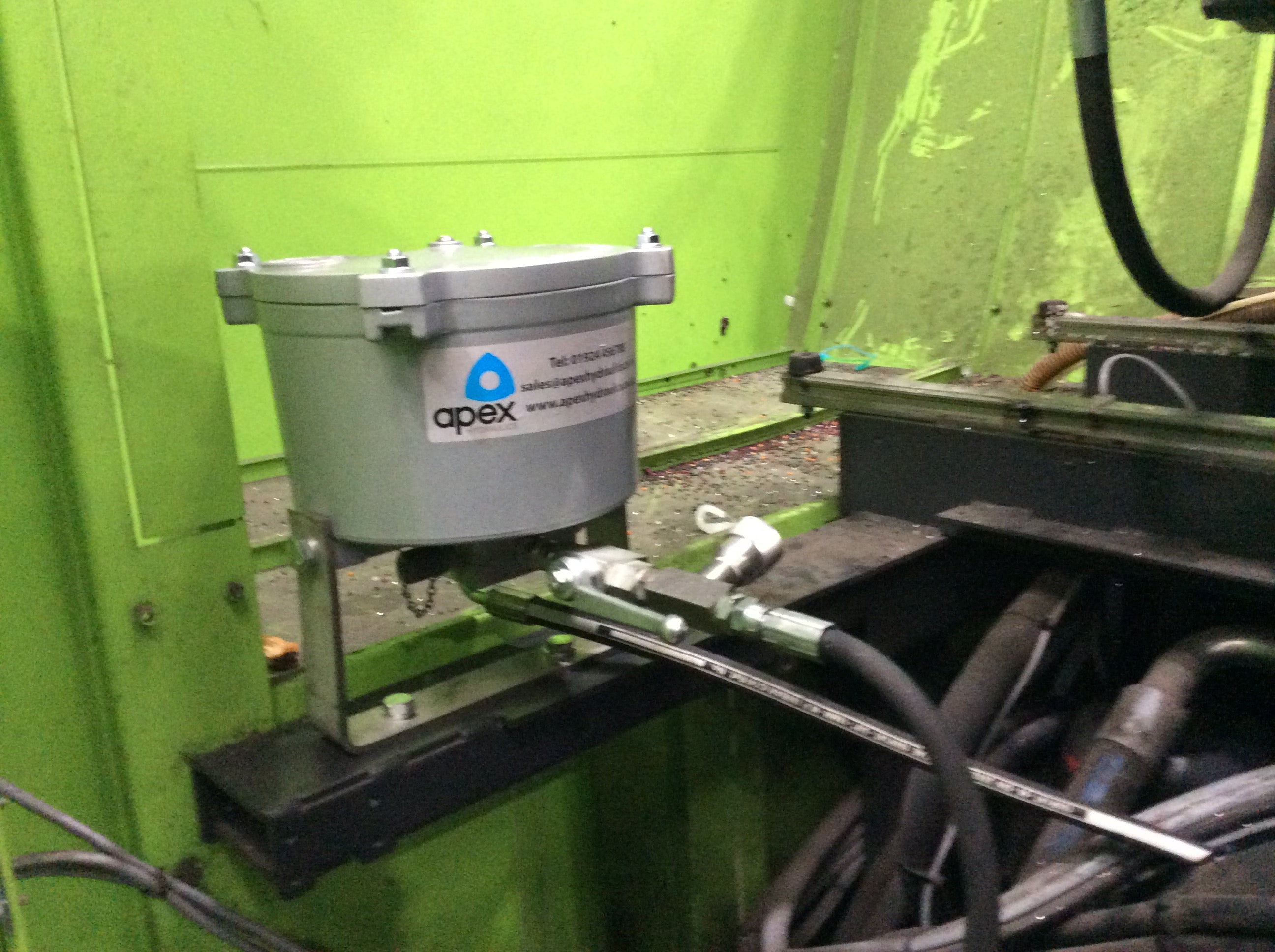

3. Mounting
   • Install the unit vertically using the supplied bracket
   • Position close to the system for short hose runs
   • Ensure easy access for servicing

Because the system operates on a bypass principle, it does not interfere with normal operation and can run continuously while equipment is in use.

🔹 Technical Highlights

• Filtration: 3 micron absolute
• Flow Rate: 120–250 L/h
• Water Capacity: Approx. 780ml per cartridge
• Operating Temperature: -20°C to +120°C
• Construction: Heavy-duty aluminium housing
• System Type: Continuous bypass filtration

Cleaner oil. Longer life. Lower costs.
Continuous filtration system that protects your equipment while it runs.
Simple to install, powerful in performance.
