Oil Filtration Wall Unit

Description

Self standing/wall mount Unit Suitable as a permanent connection to small tanks less than 500ltr.

• Height: 550 mm
• Width: 510 mm
• Depth: 260 mm
• Weight: 70kg
• Water Retention: 780ml
• Flow rate: 250lph

Comes with ‘240v progressive cavity pump/motor‘
(110v or 415v OPTIONAL EXTRA) - contact direct to discuss

🔹 Product Overview

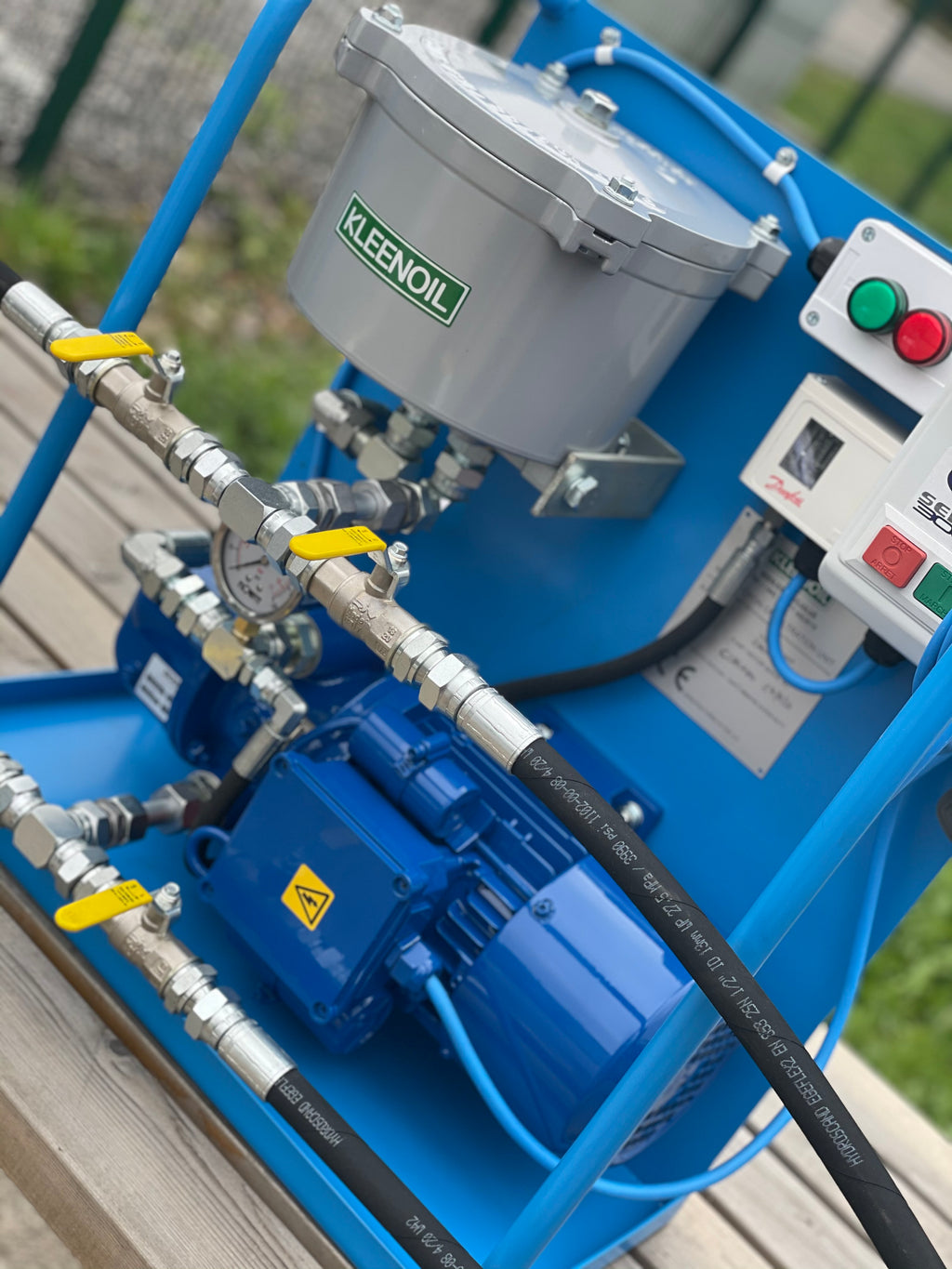

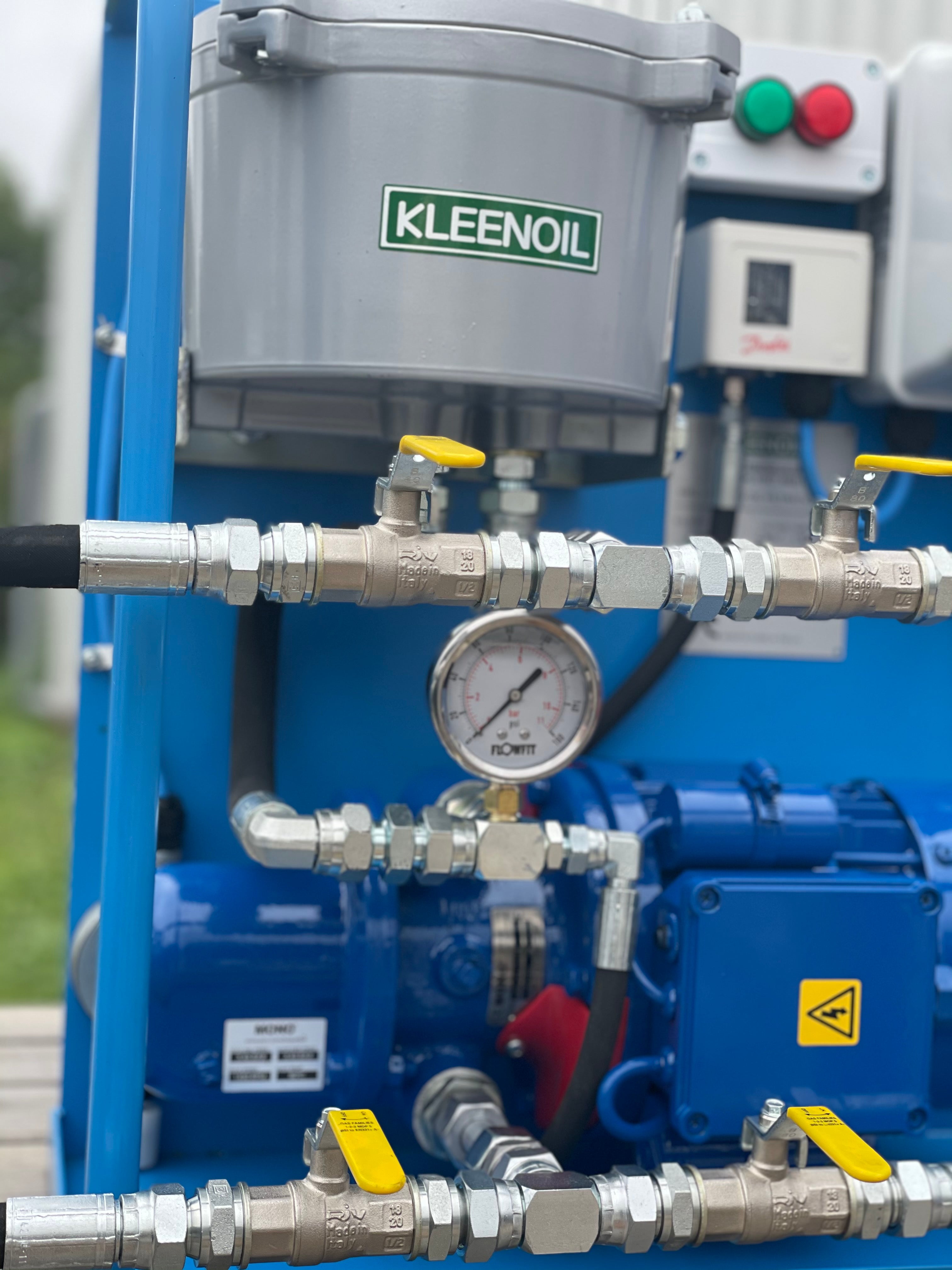

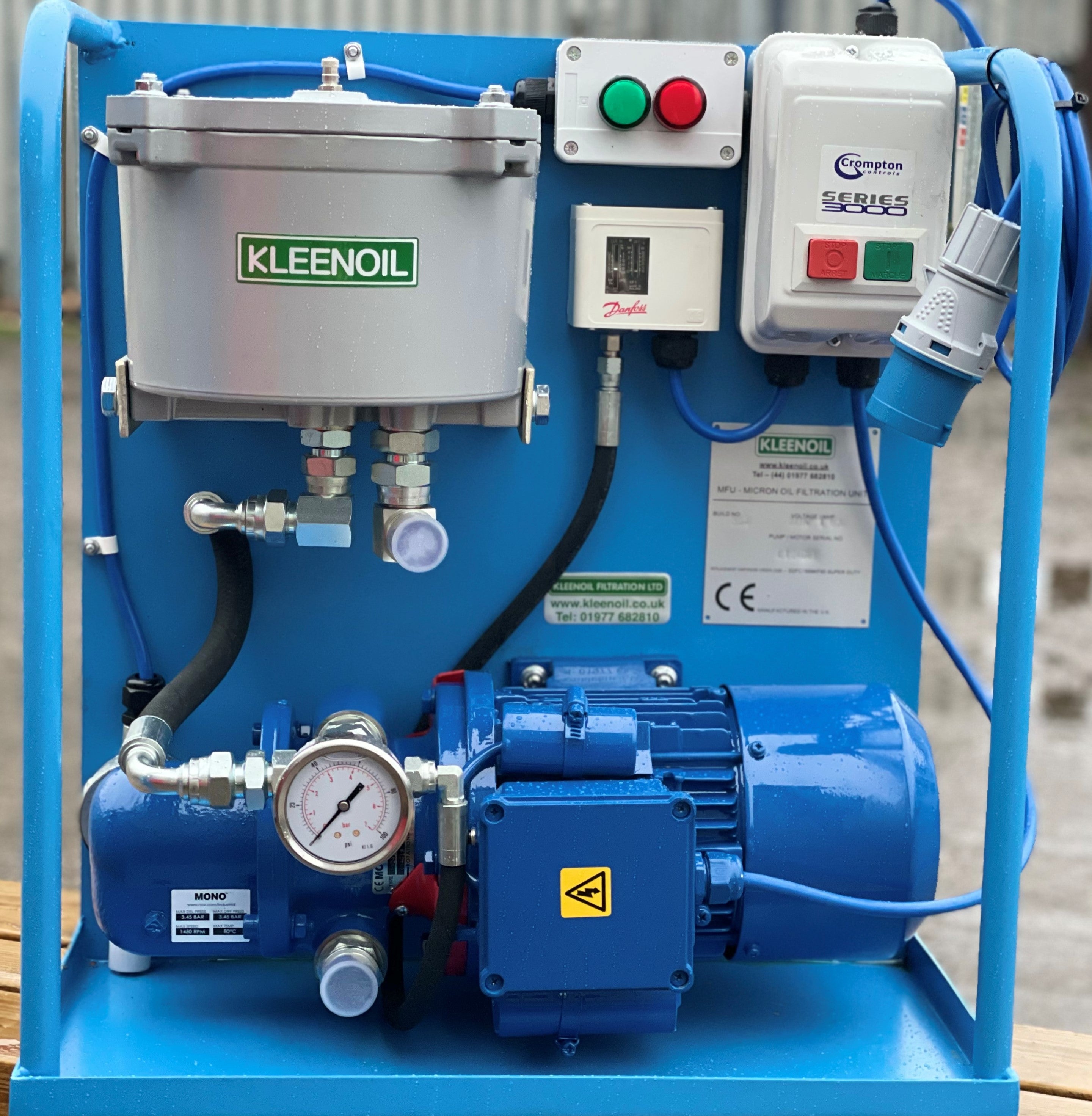

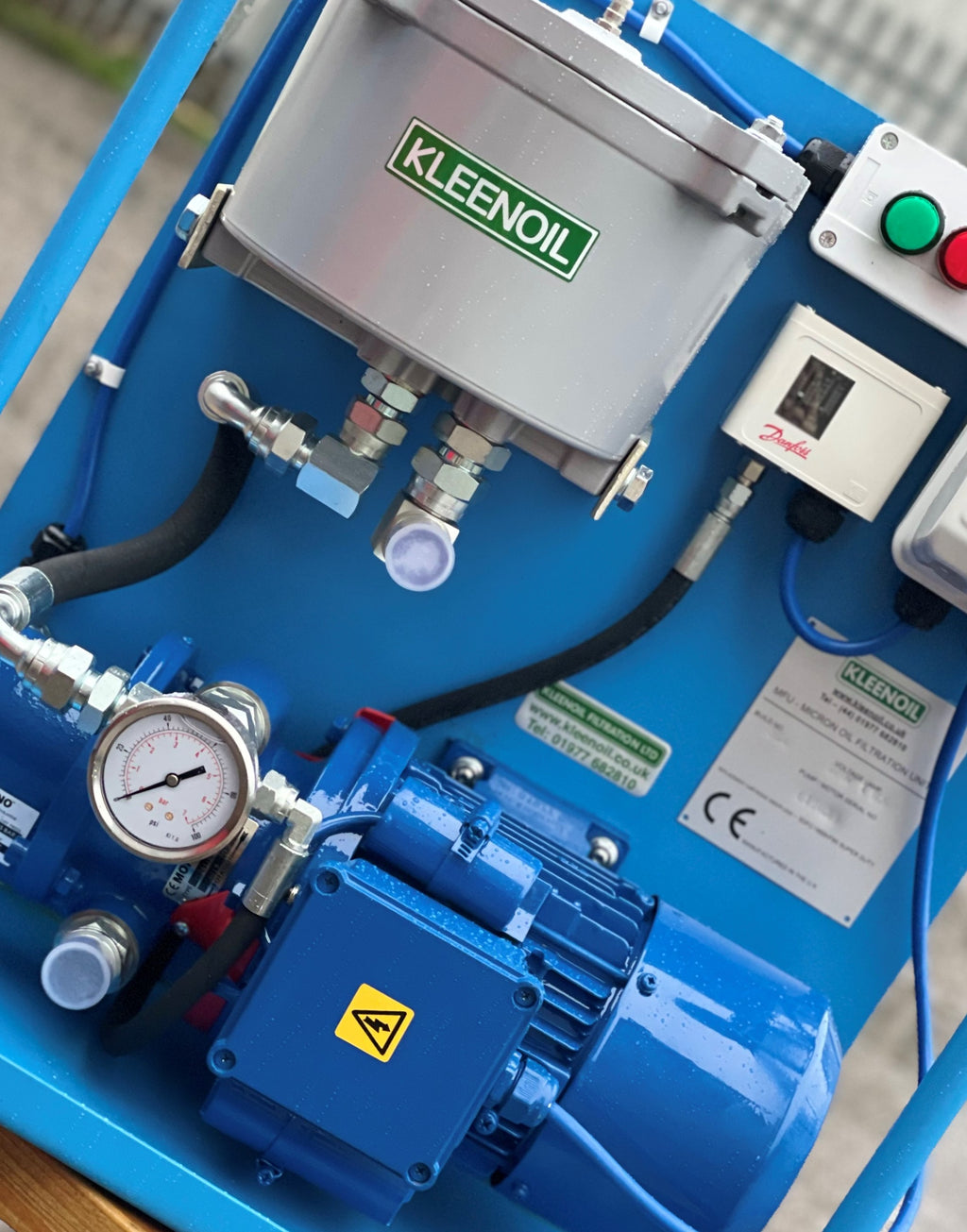

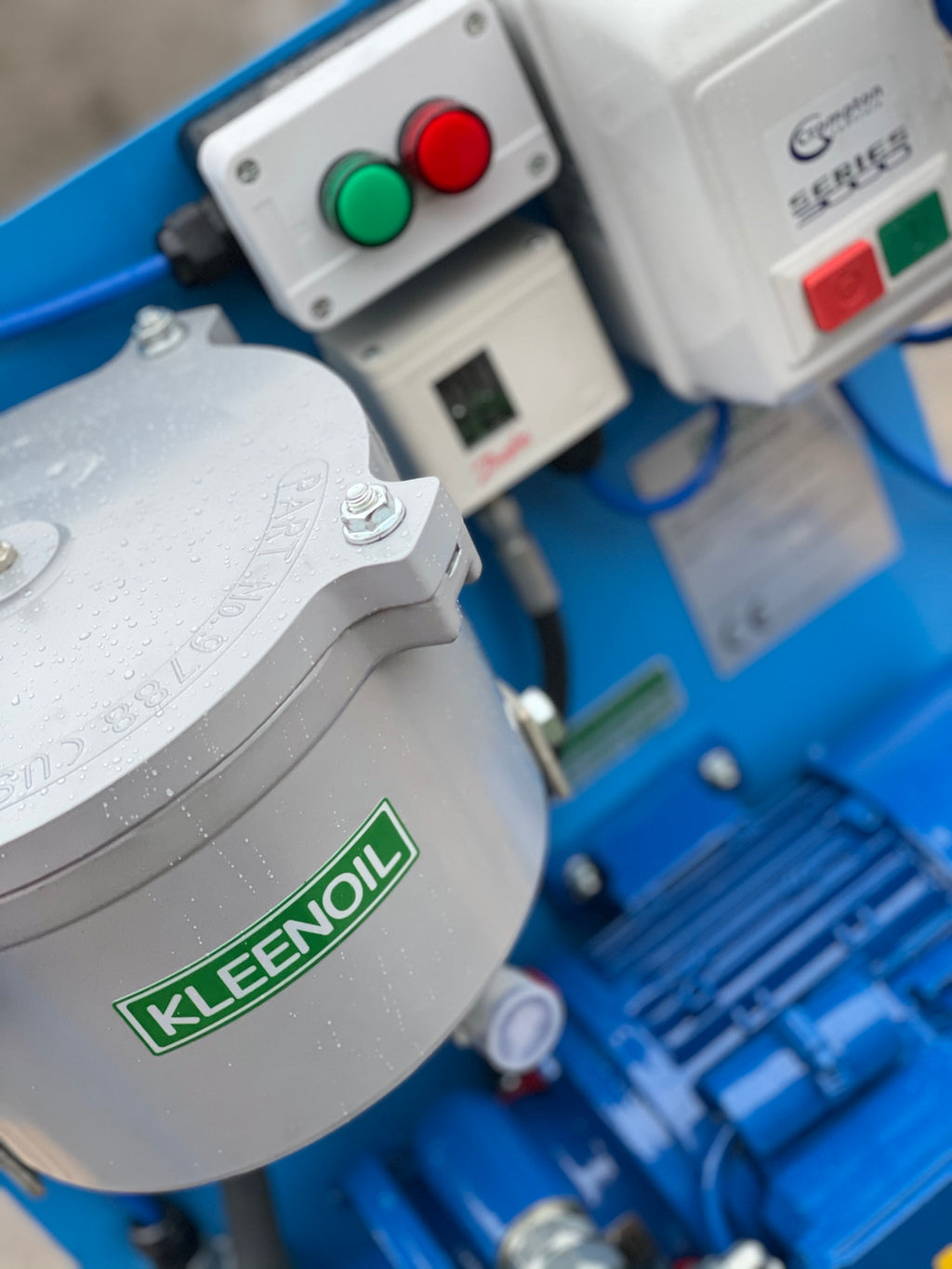

The KLEENOIL Wall Mounted Filtration Unit (MS1 Type) is a compact, high-efficiency off-line filtration system designed for permanent installation on small oil and fluid systems. Built for simplicity, reliability, and continuous operation, this unit provides effective oil conditioning while maintaining a minimal footprint.

Ideal for tanks and systems up to 500 litres, the unit offers a practical, space-saving solution for maintaining clean oil and extending equipment life.

🔹 Why You Need This System

Even in smaller systems, contamination from particles and moisture can rapidly degrade oil quality—leading to increased wear, reduced efficiency, and unnecessary maintenance.

This wall-mounted unit provides continuous filtration, removing contamination while the system is running. The result is cleaner oil, improved reliability, and reduced long-term operating costs.

🔹 Where It’s Used

Designed for permanent installation, this unit is ideal for:

• Small hydraulic systems and power packs
• Gearboxes and lubrication systems
• Coolant and cutting fluid systems
• Diesel storage and day tanks
• Industrial machinery with small reservoirs

Perfect for applications where space is limited but oil cleanliness is critical.

🔹 How It Works

The system operates as an off-line / bypass filtration unit, continuously circulating oil through a high-efficiency filter without interrupting normal operation.

• Oil is drawn from the tank or system
• Passed through the filtration unit at a controlled flow rate
• Contaminants and water are removed
• Clean oil is returned back to the system

This process ensures fine filtration down to 3 microns and effective water removal, maintaining oil in near “as new” condition.

🔹 Key Benefits

• Compact wall-mounted design for permanent installation
• Removes particles down to 3 micron
• Removes free and dissolved water contamination
• Extends oil life and reduces replacement frequency
• Reduces wear, downtime, and maintenance costs
• Simple, continuous operation with minimal intervention

🔹 System Features

• Single filter configuration based on proven MS1 design
• Heavy-duty construction suitable for industrial environments
• Compact footprint for wall mounting or floor standing
• Integrated pump for consistent flow performance
• Simple electrical operation (typically 240V supply)
• Optional magnetic core upgrade for enhanced ferrous particle removal to sub-micron levels

🔹 Technical Highlights

• Flow Rate: Approx. 250 LPH
• Water Capacity: Approx. 780 ml
• Recommended Tank Size: Up to ~500L
• Dimensions:
  • Height: 550 mm
  • Width: 510 mm
  • Depth: 260 mm
• Weight: Approx. 70 kg
• System Type: Wall-mounted / self-standing off-line filtration unit

🔹 Installation & Operation

Designed for straightforward installation:

• Mount to wall or position as a self-standing unit
• Connect to a suitable power supply (typically 240V)
• Install feed and return lines into the tank or system
• Switch on and allow the unit to run continuously

The system operates independently, providing ongoing filtration with minimal supervision.

🔹 Maintenance & Servicing

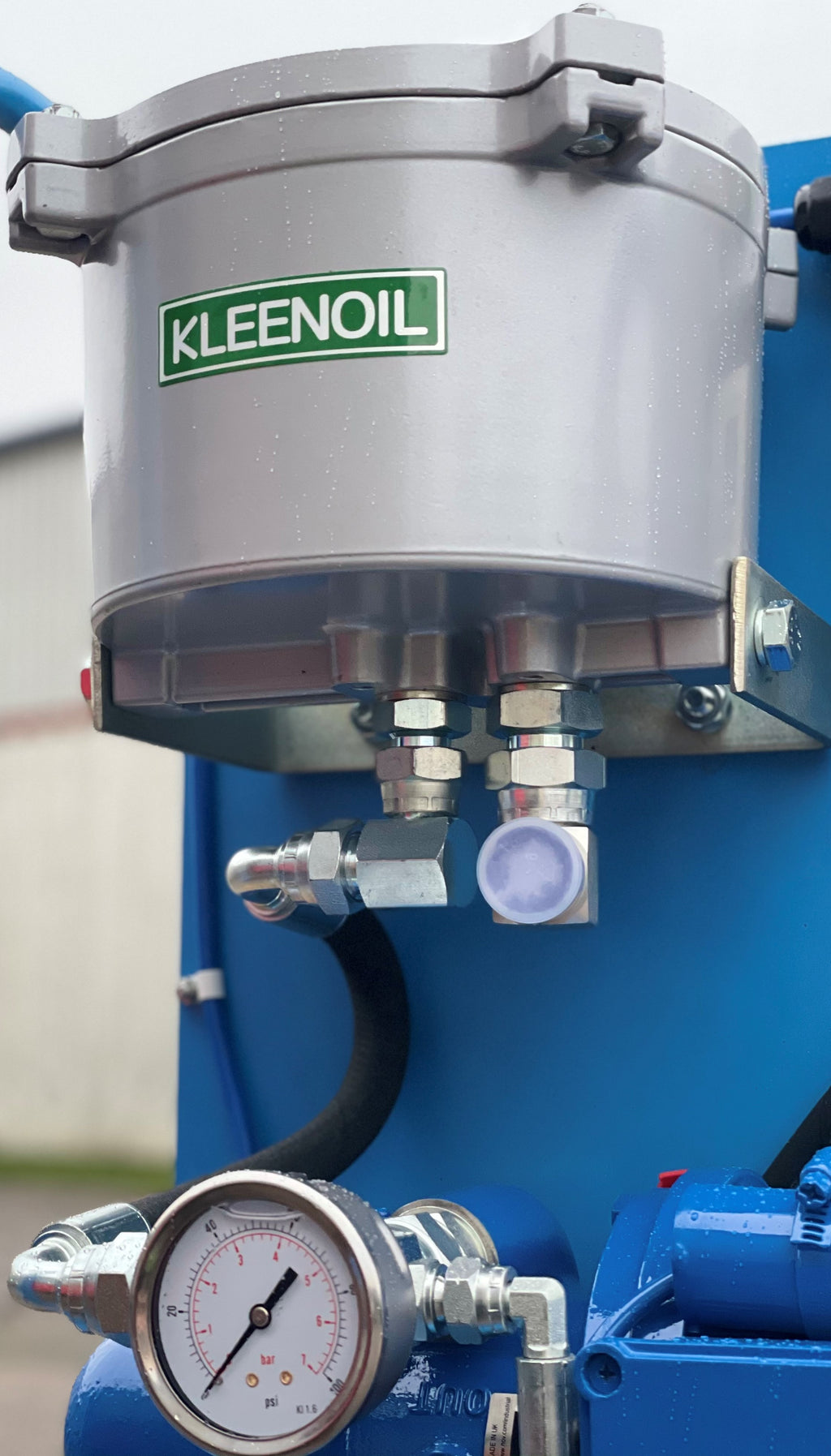

• Cartridge replacement: Simple bolt-down lid system (see filter replacement instructions)
• Magnetic core (if fitted): Periodic wipe clean during servicing
• General operation: Designed for low maintenance and long-term reliability

🔹 Support & Application Advice

KLEENOIL UK provides a complete support service, working with you to identify the most effective filtration solution for your application. Our goal is simple—deliver consistently clean oil and long-term system performance.

Speak to our team directly on +44 (0) 1977 682810 for tailored advice.

Buy direct from the manufacturer for the best pricing and service. contact sales@kleenoilco.uk
