Oil Filtration Work Station

Bunded Work Station Suitable for servicing or as a permanent connection to medium sized tanks to around 2000ltr or heavily contaminated.

• Height: 548 mm
• Width: 660 mm
• Depth: 906 mm
• Weight: 120kg
• Water Retention: 3120ml
• Flow rate: 1000lph

Comes with ‘240v progressive cavity pump/motor‘
(110v or 415v OPTIONAL EXTRA)

🔹 Product Overview

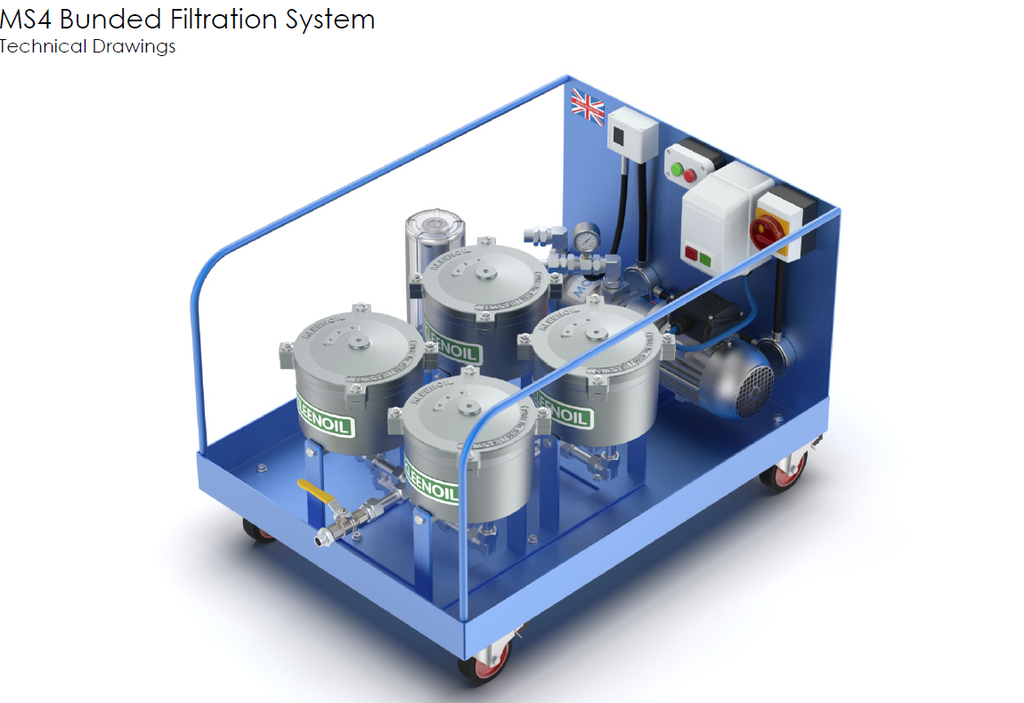

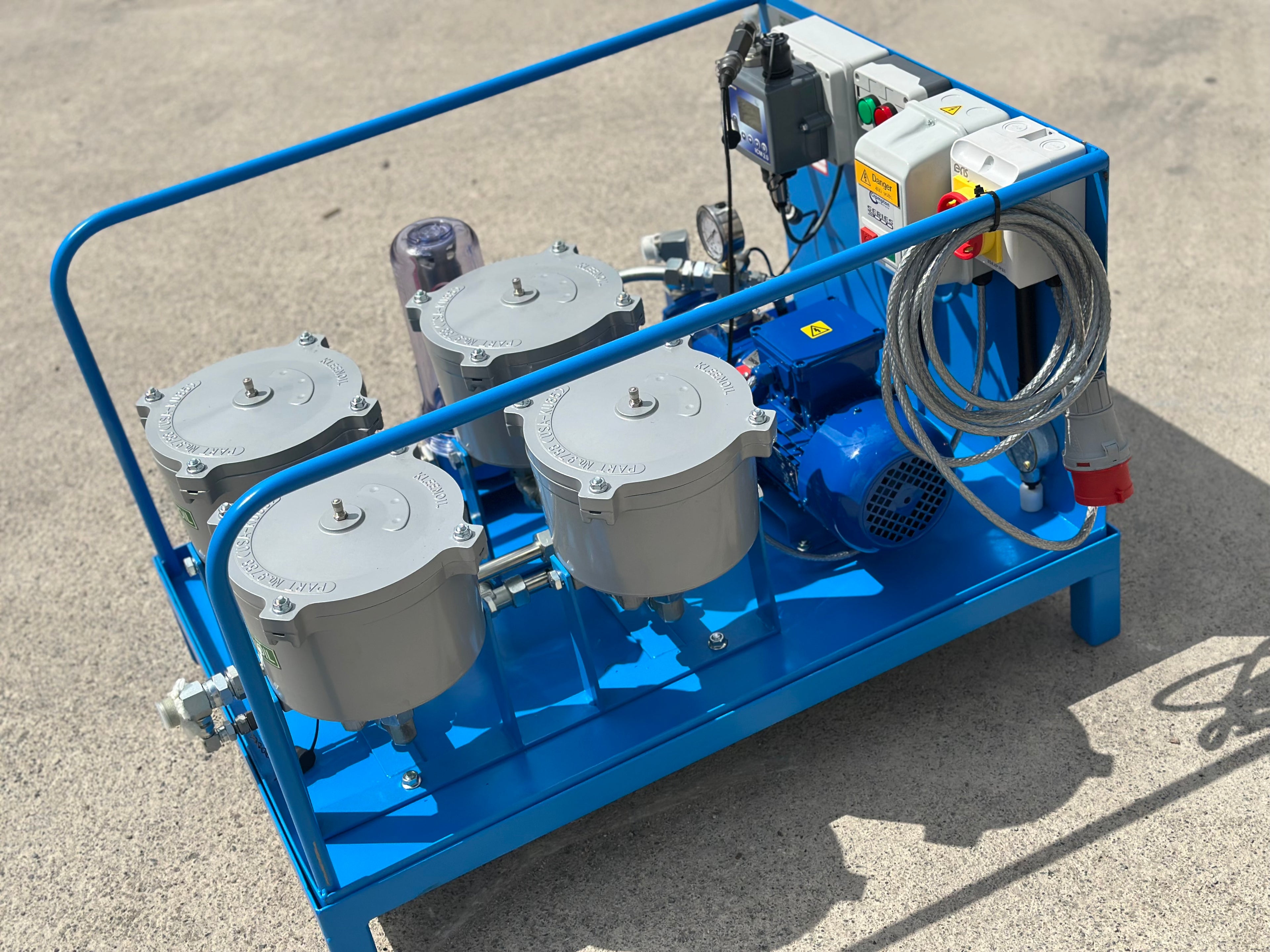

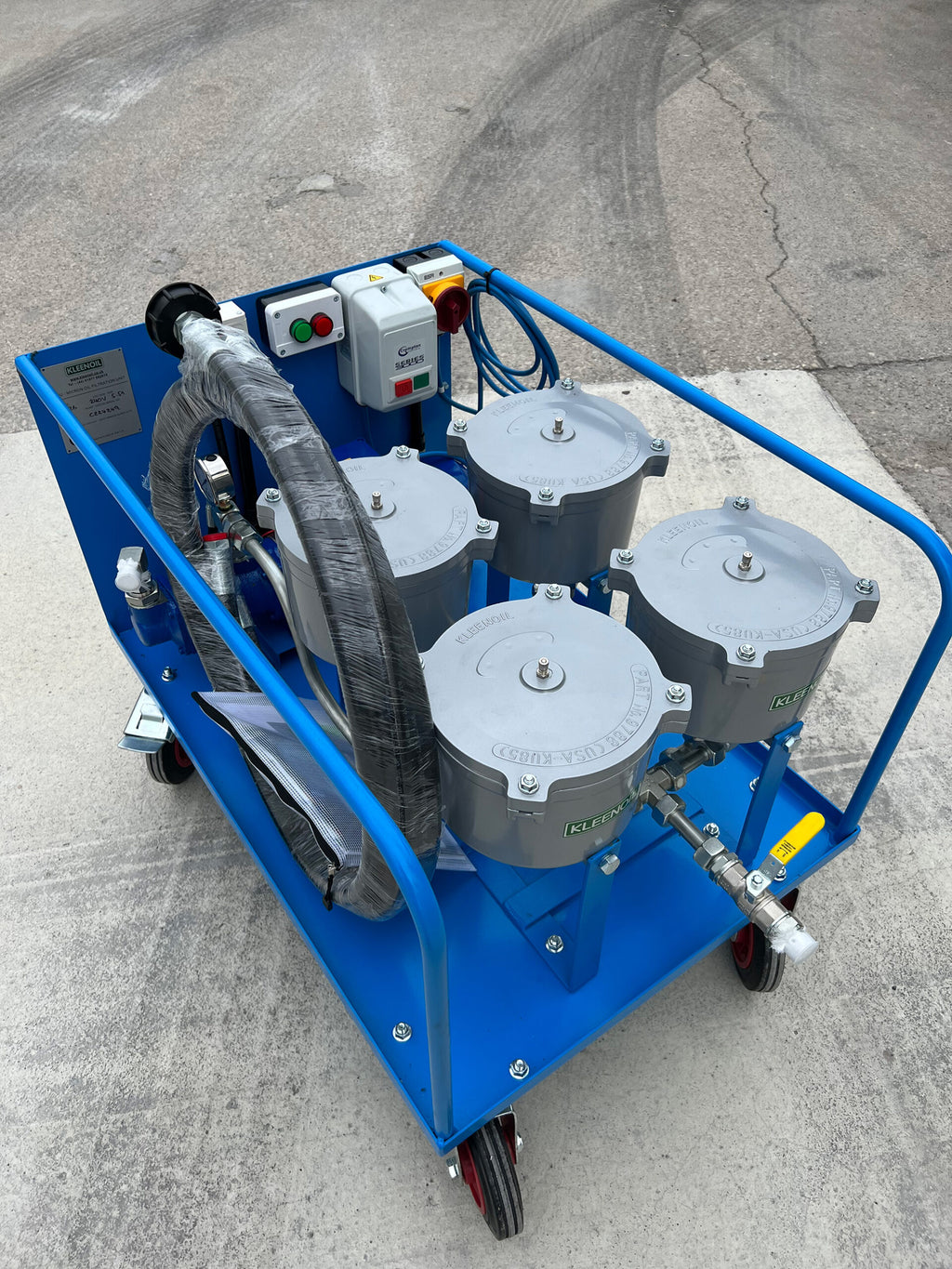

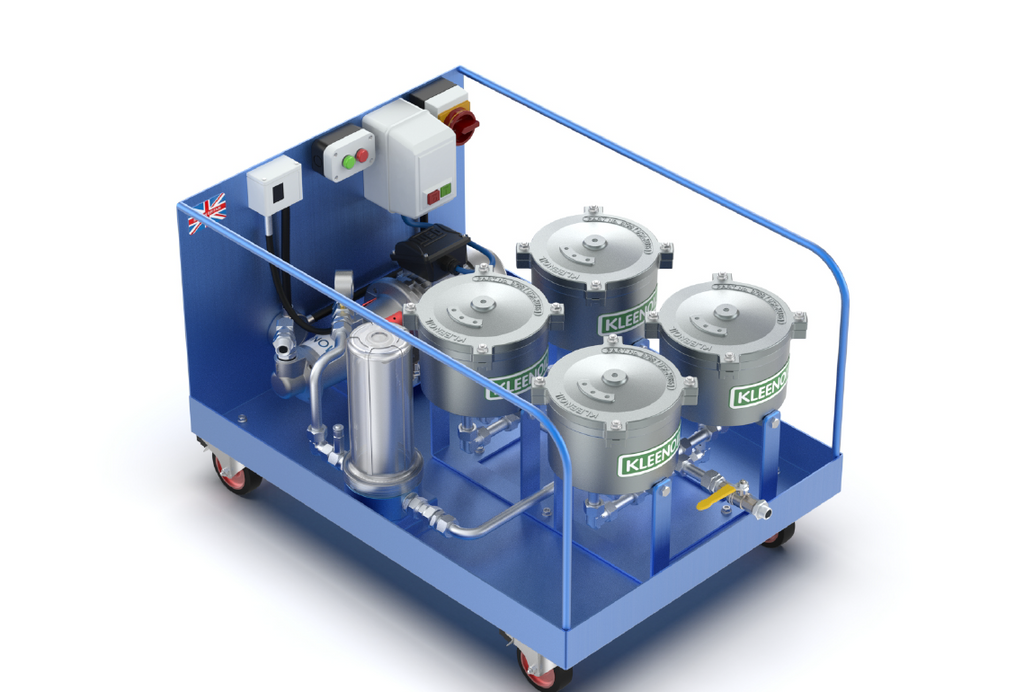

The KLEENOIL MS4 Bunded Workstation is a high-capacity, quad-filter off-line filtration system designed for efficient oil and fluid conditioning across medium to large industrial applications. Engineered for both fixed installation and mobile servicing, this versatile unit delivers powerful filtration performance while maintaining a compact, robust footprint.

Ideal for systems ranging from 2000 to 6000 litres, the MS4 provides rapid cleaning of contaminated oils, ensuring improved system reliability and extended fluid life.

🔹 Why You Need This System

Oil contamination is a leading cause of equipment wear and failure—especially in larger systems where fluid volumes increase the risk of degradation.

The MS4 is designed to tackle this challenge by continuously removing fine particles and water contamination, restoring oil cleanliness and protecting critical components. It is particularly effective for heavily contaminated systems or routine preventative maintenance, reducing downtime and costly oil changes.

🔹 Performance & Capability

Operating as an off-line filtration system, the MS4 continuously circulates oil through four high-efficiency filter vessels, cleaning fluid without interrupting system operation.

Using KLEENOIL’s proven filtration technology, the system:

• Removes particulate contamination down to 3 microns
• Removes up to 99.5% water contamination
• Achieves oil cleanliness levels of ISO 4406 14/9

With a flow rate of approximately 1000 litres per hour, the MS4 delivers fast and effective cleaning for medium to large tanks and systems.

🔹 Key Applications

• Hydraulic, gear & transmission fluid reservoir cleaning
• Medium to large tank servicing (2000–6000L systems)
• Oil and diesel fuel transfer
• Cleaning heavily contaminated oils
• Reclaiming stored or unused oils prior to use
• Routine preventative maintenance and system flushing

🔹 Key Benefits

• Quad filter system for increased cleaning capacity
• Rapid removal of contamination and water
• Extends oil life and reduces replacement frequency
• Reduces downtime and maintenance costs
• Suitable for both fixed and mobile applications
• Bunded design for environmental protection and spill control

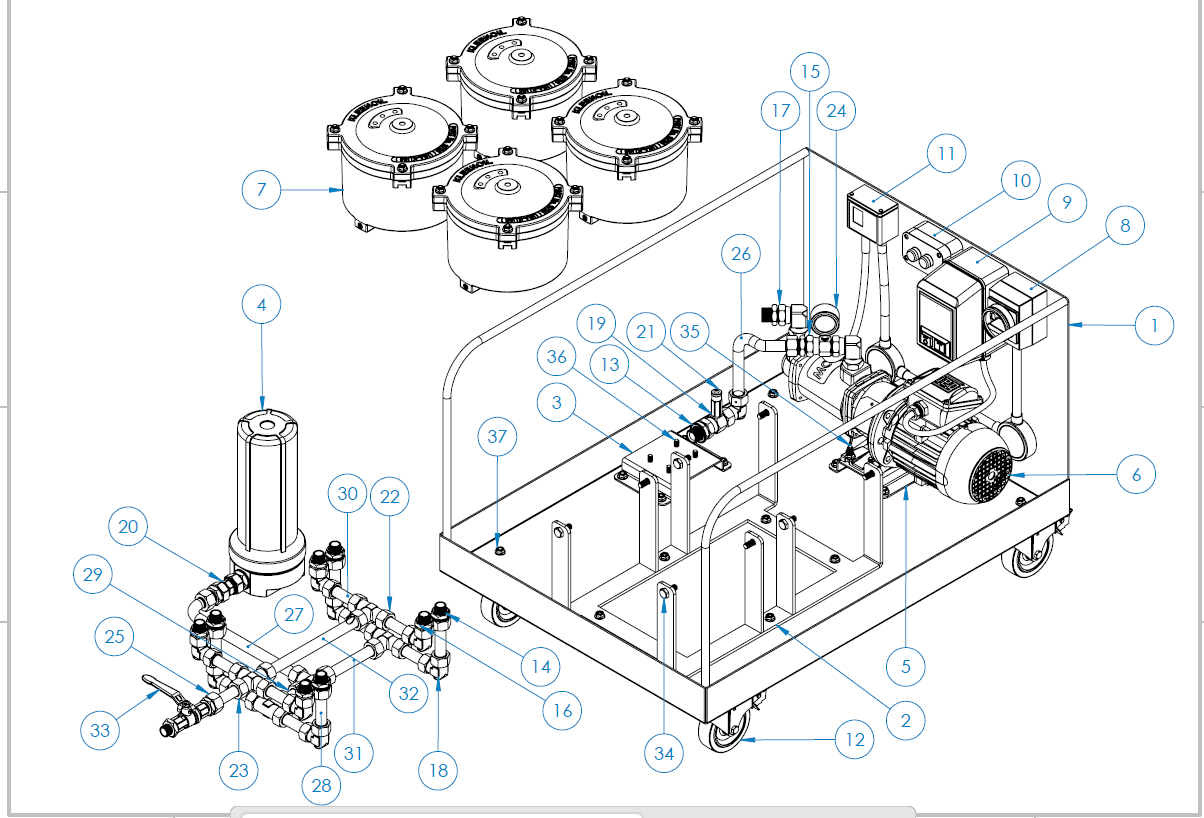

🔹 System Features

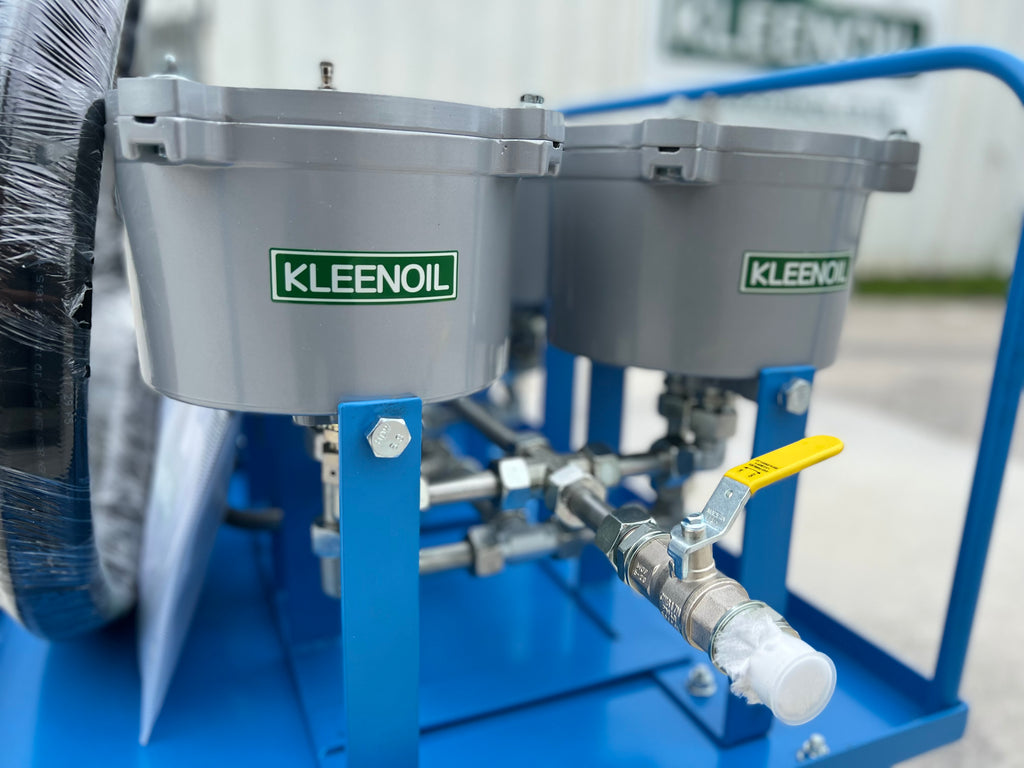

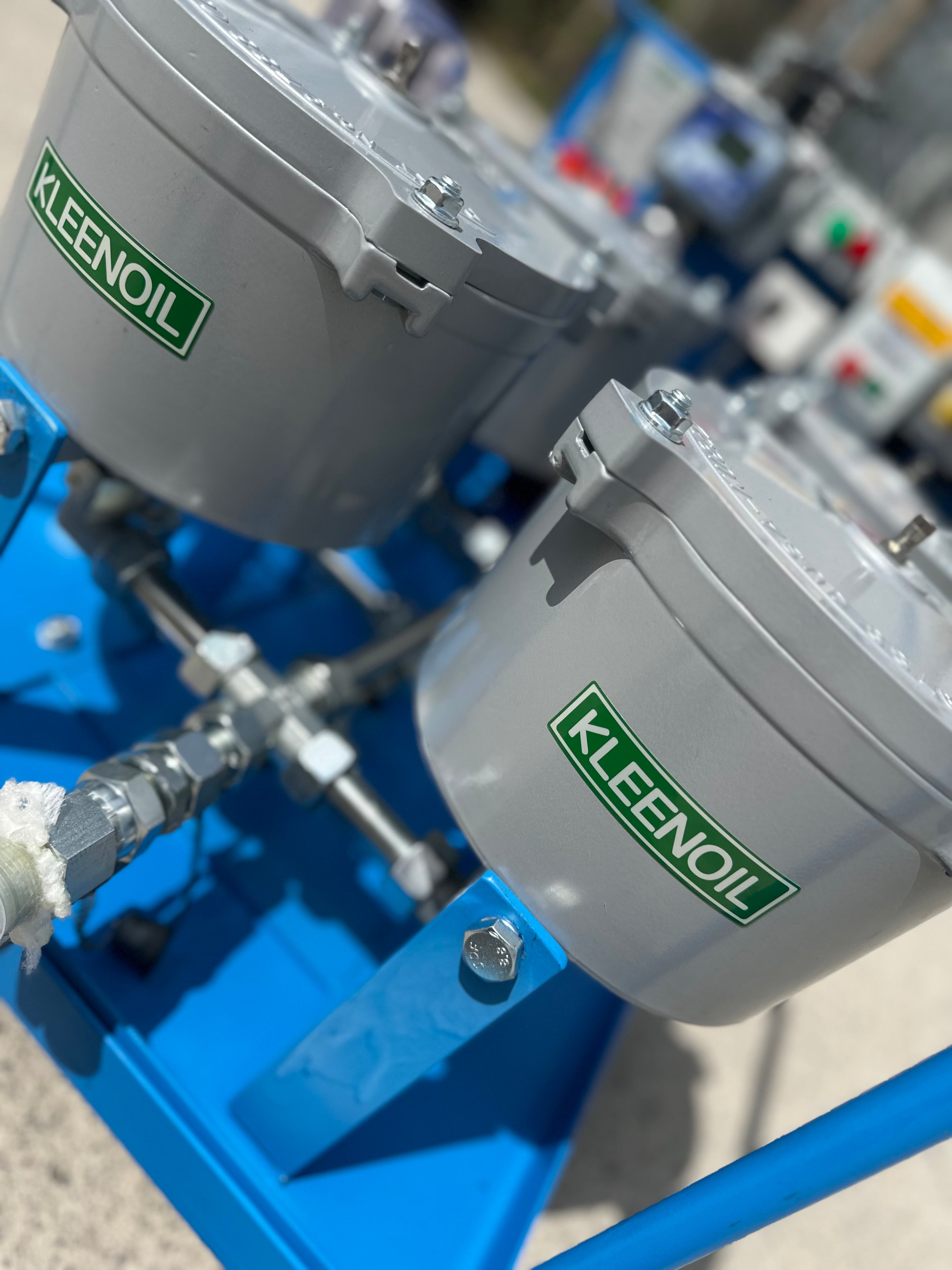

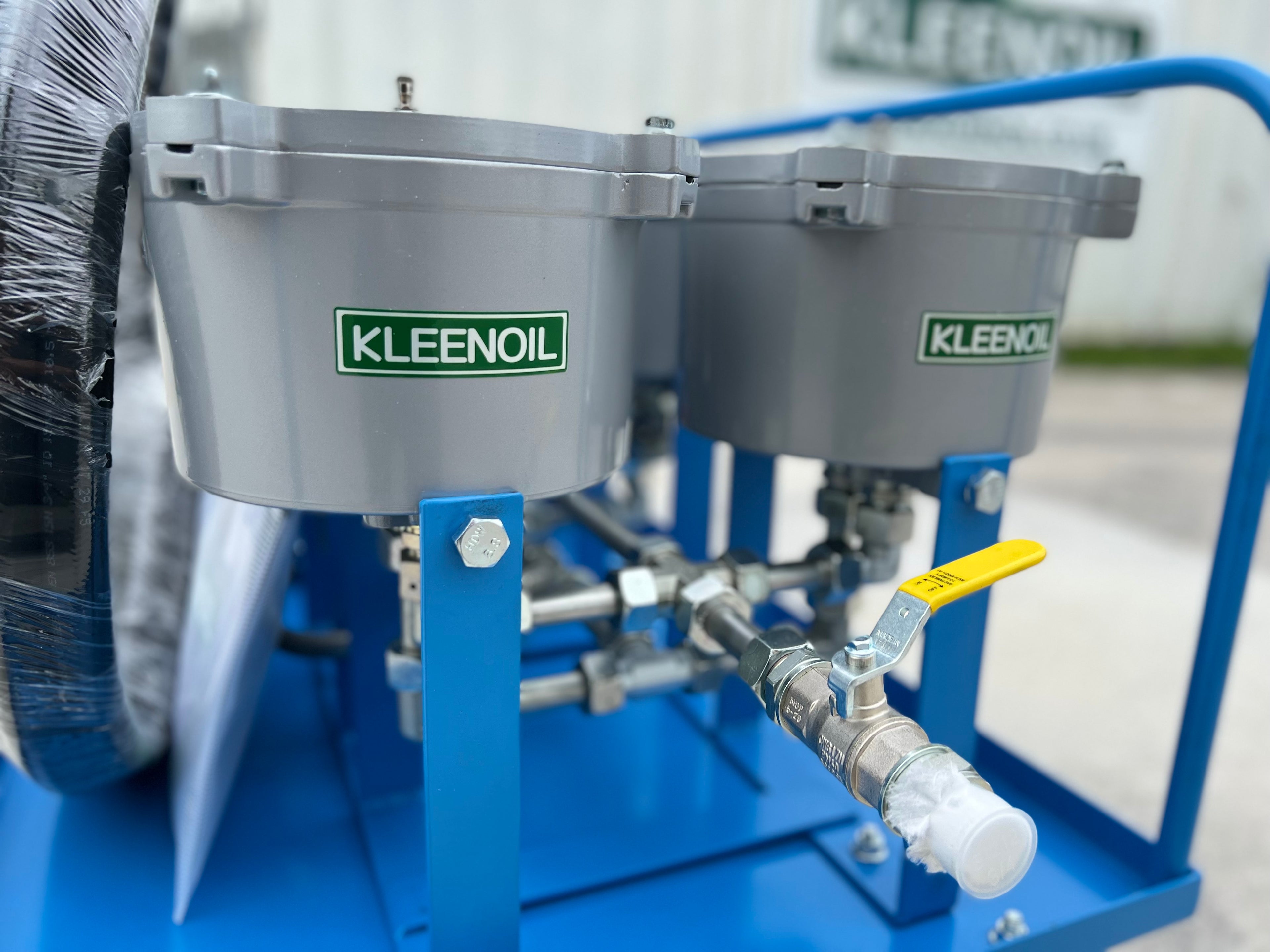

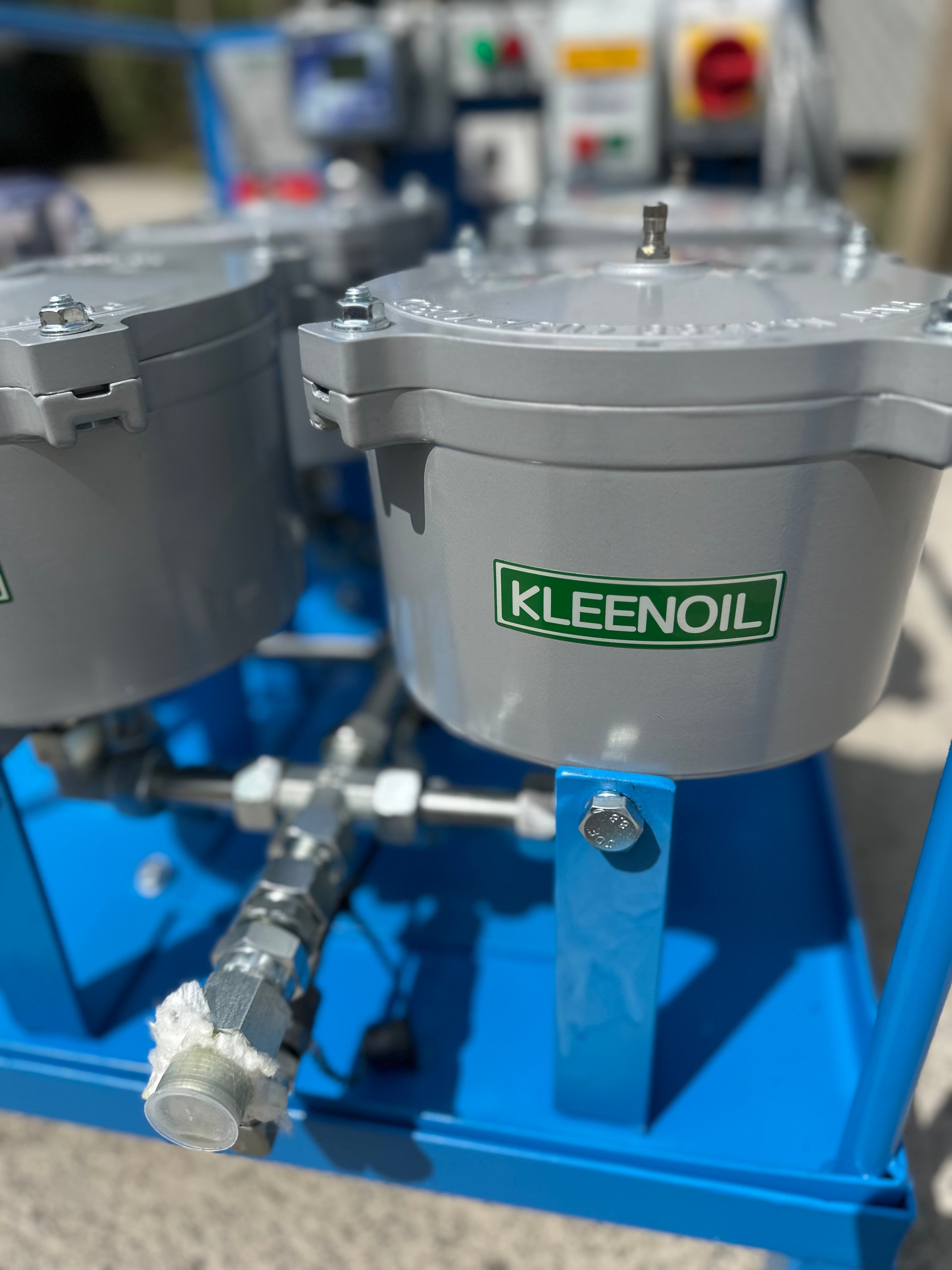

• Four filter vessel configuration for high-capacity filtration
• Heavy-duty bunded frame for safe fluid containment
• Mono progressive cavity pump for consistent flow
• Pressure gauge and overload protection system
• Isolator switch with clear ON/OFF controls
• Inlet and outlet sampling points for oil monitoring
• Supplied with suction and return hoses
• Optional Micromag unit for sub-micron ferrous particle removal

Built for demanding environments, the MS4 combines durability, safety, and ease of operation in one efficient system.

🔹 Technical Highlights

• Filtration: 3 micron (cellulose media)
• Flow Rate: Approx. 1000 LPH
• Water Removal: Up to 99.5%
• Water Capacity: Approx. 3000ml (system total)
• Tank Capacity: Suitable for systems ~2000–6000L
• Filter Configuration: Quad cartridge system
• Pump Type: Mono Progressive Cavity
• Weight: Approx. 120 kg

🔹 How the System Works

KLEENOIL mobile and workstation systems are designed for simple, on-site operation:

• Position the unit close to the tank or system
• Connect to a suitable power source (typically 240V)
• Place the suction hose into the oil source
• Position the return hose back into the tank (ideally away from the feed point)
• Switch on and allow the system to prime

Filtration begins immediately and continues until the desired cleanliness level is achieved. For best results, a before-and-after oil sample is recommended.

🔹 Maintenance & Servicing

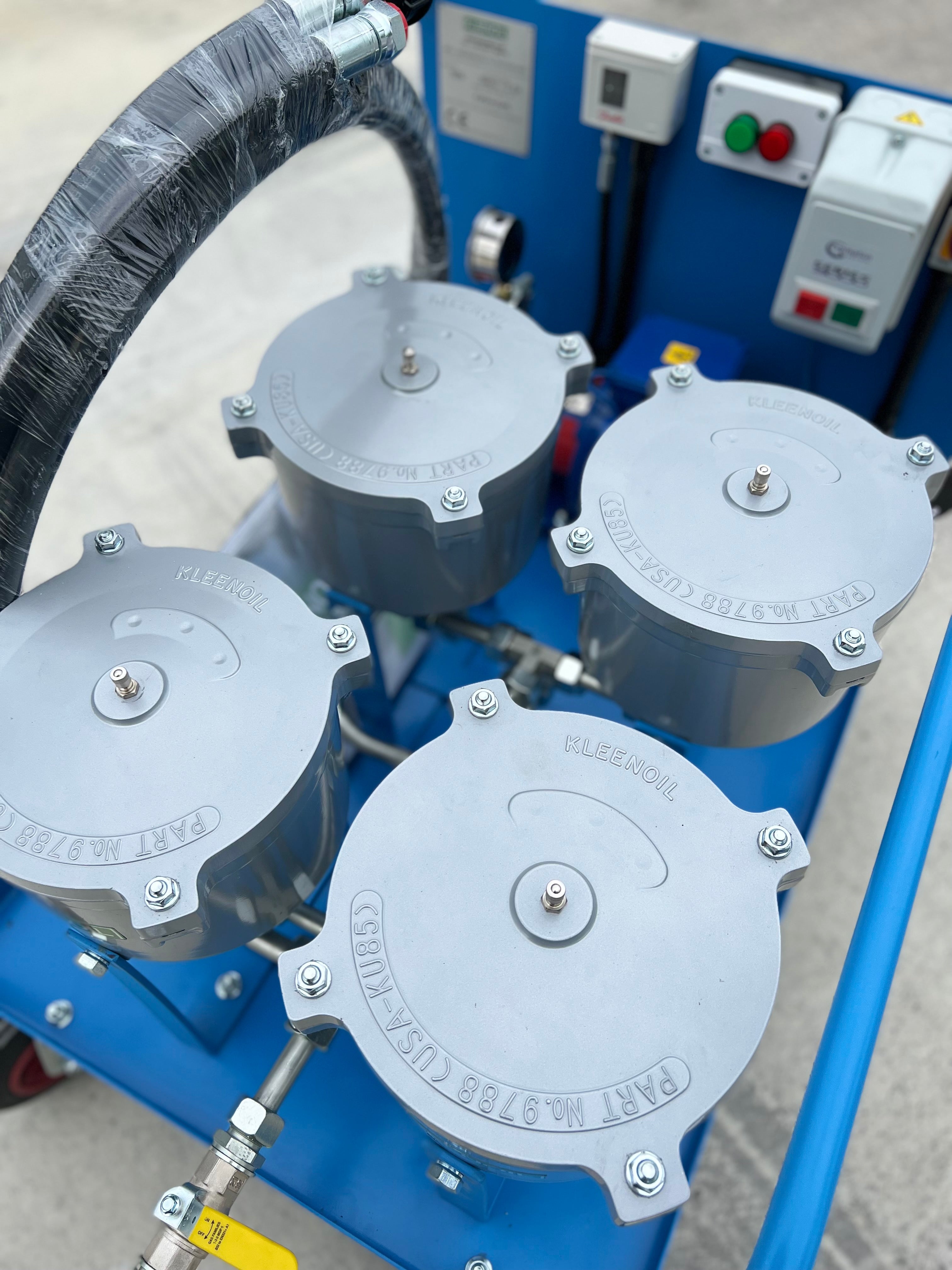

• Cartridge replacement: Simple bolt-down lid system (see filter replacement instructions)
• Micromag (if fitted): Periodic wipe clean during servicing
• General operation: Designed for low maintenance and reliable performance

🔹 Support & Application Advice

KLEENOIL UK provides a complete support service, working with you to identify the most effective filtration solution for your application. Our goal is simple—deliver consistently clean oil and long-term system performance.

Speak to our team directly on +44 (0) 1977 682810 for tailored advice.

Buy direct from the manufacturer for the best pricing and service. contact sales@kleenoilco.uk
