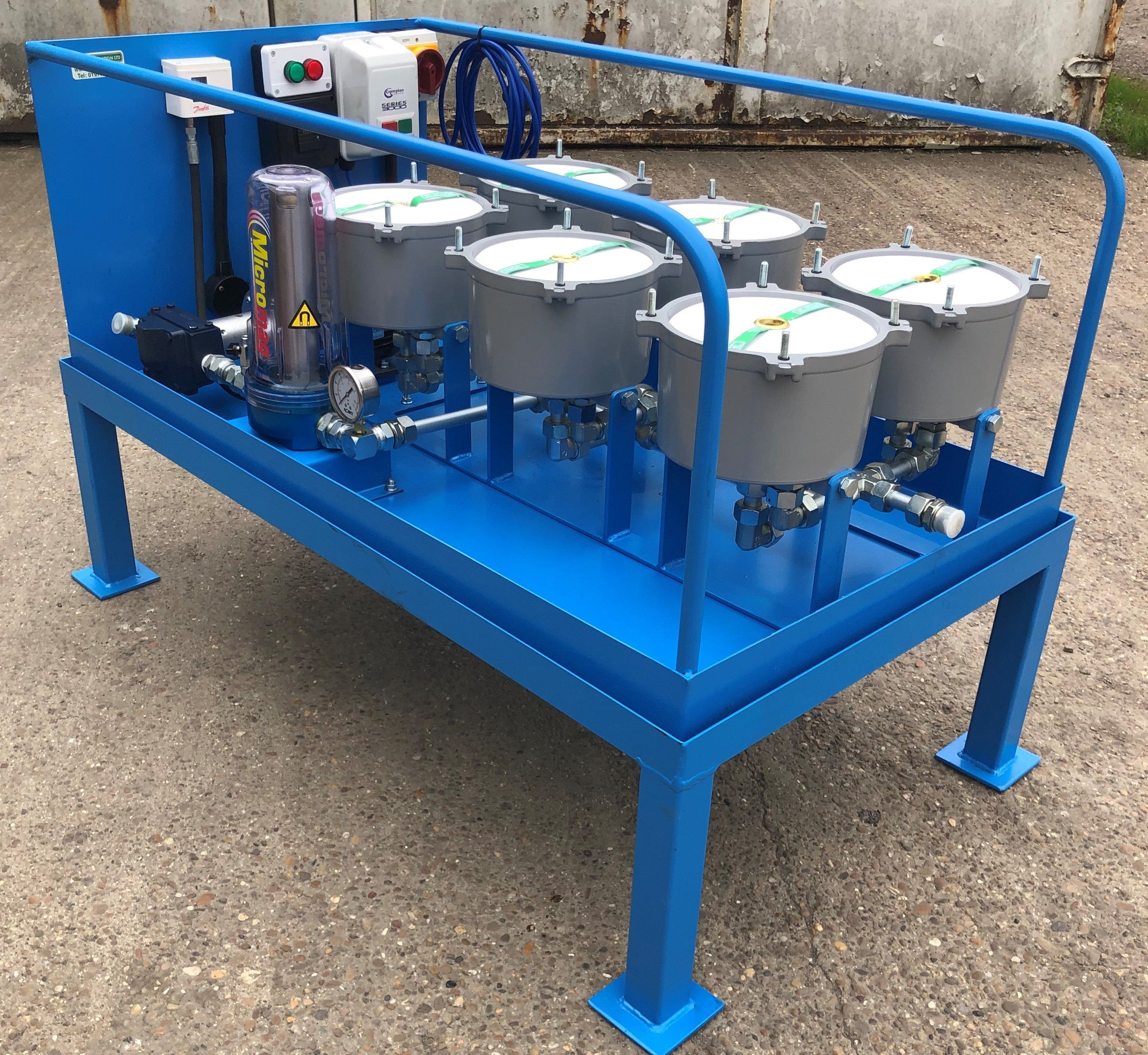

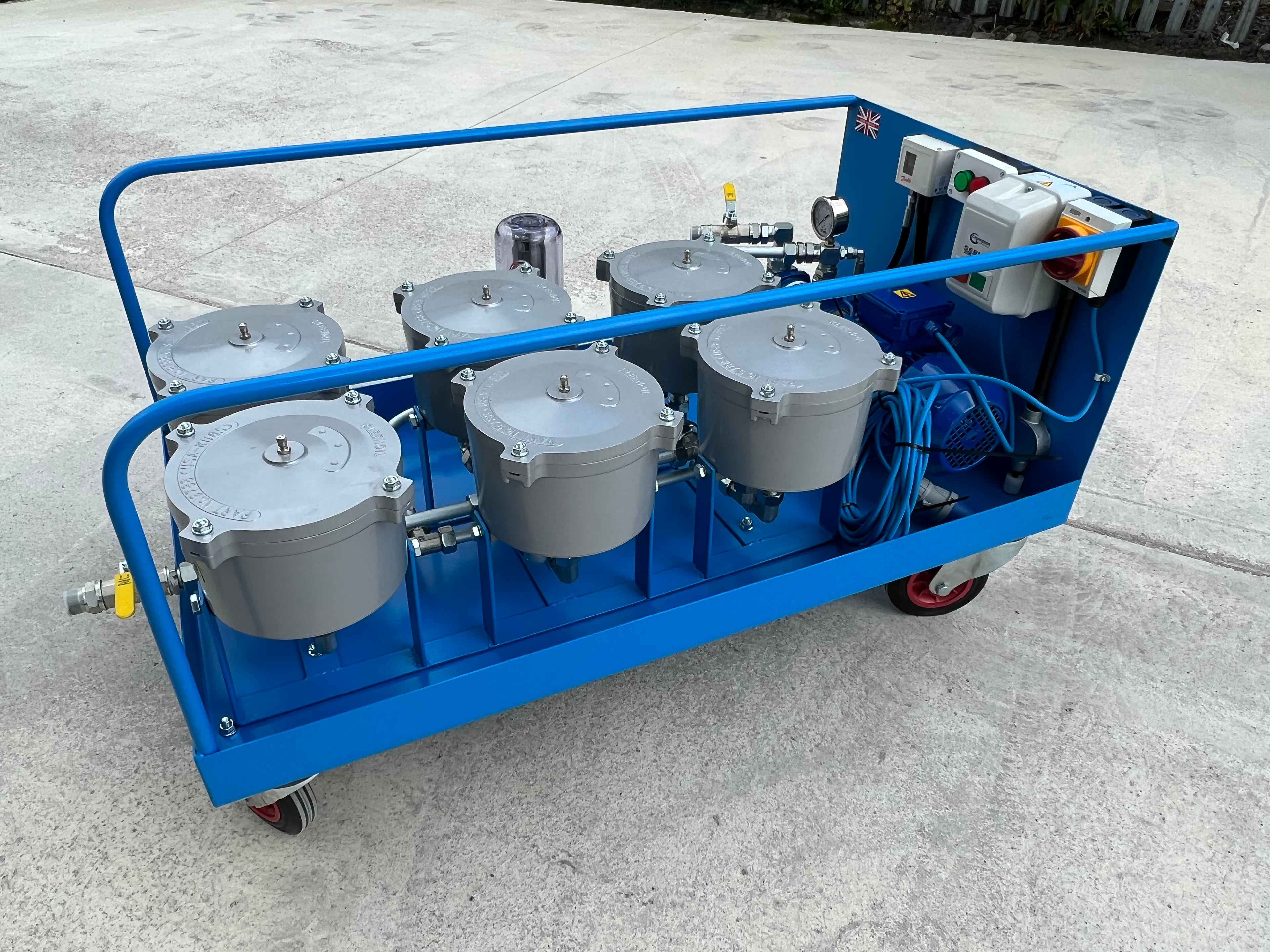

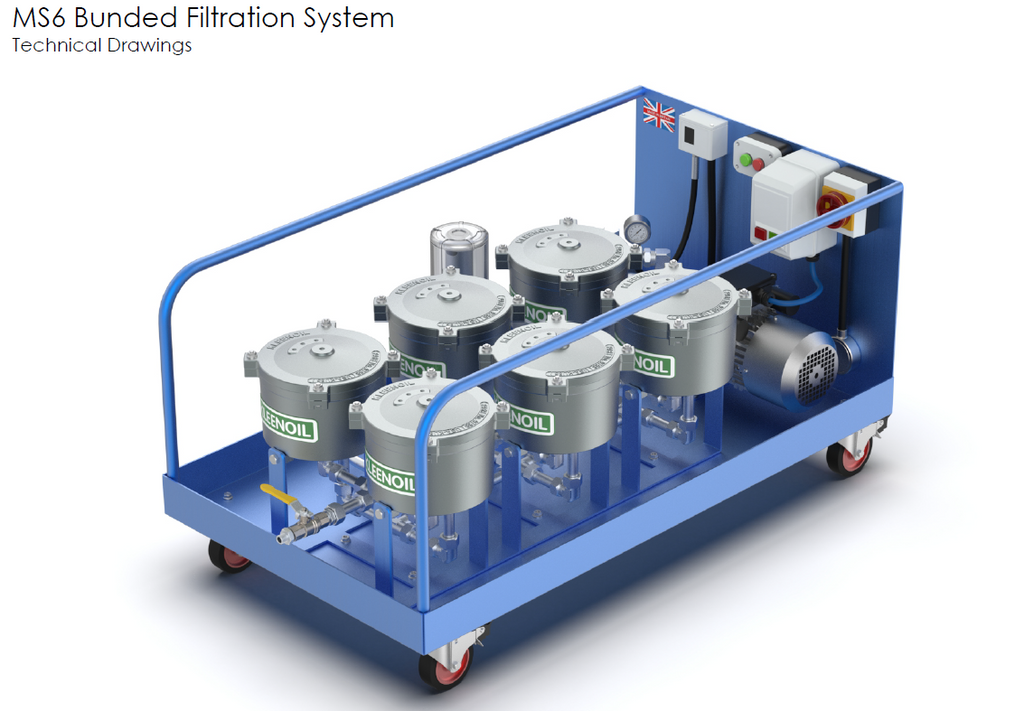

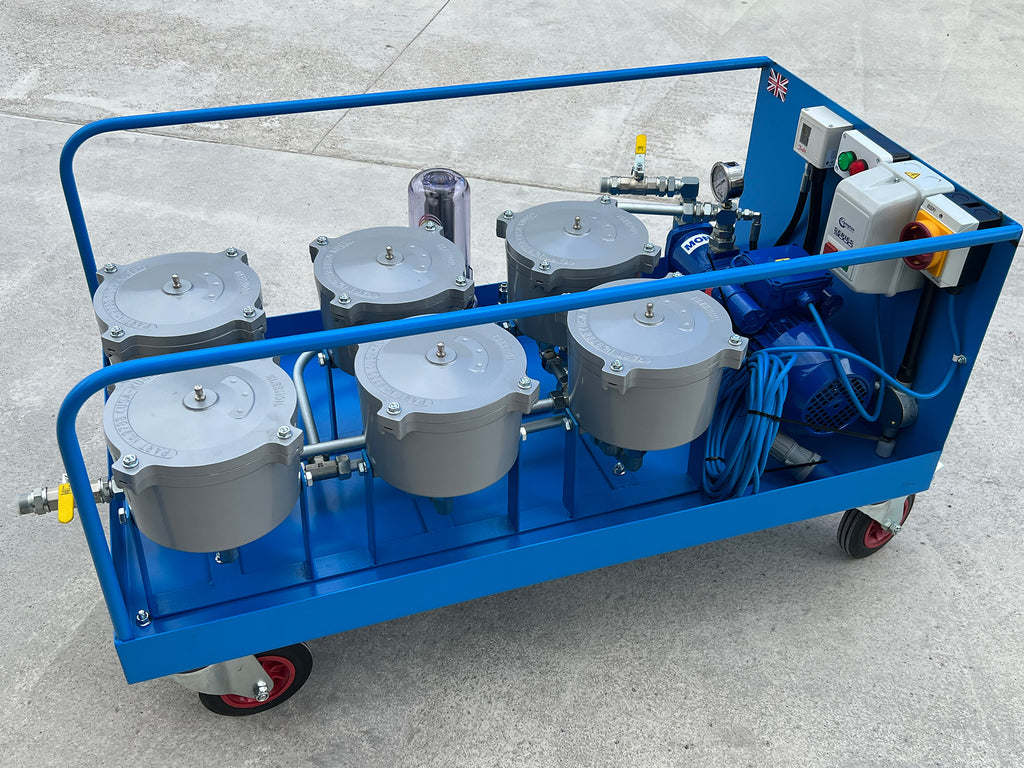

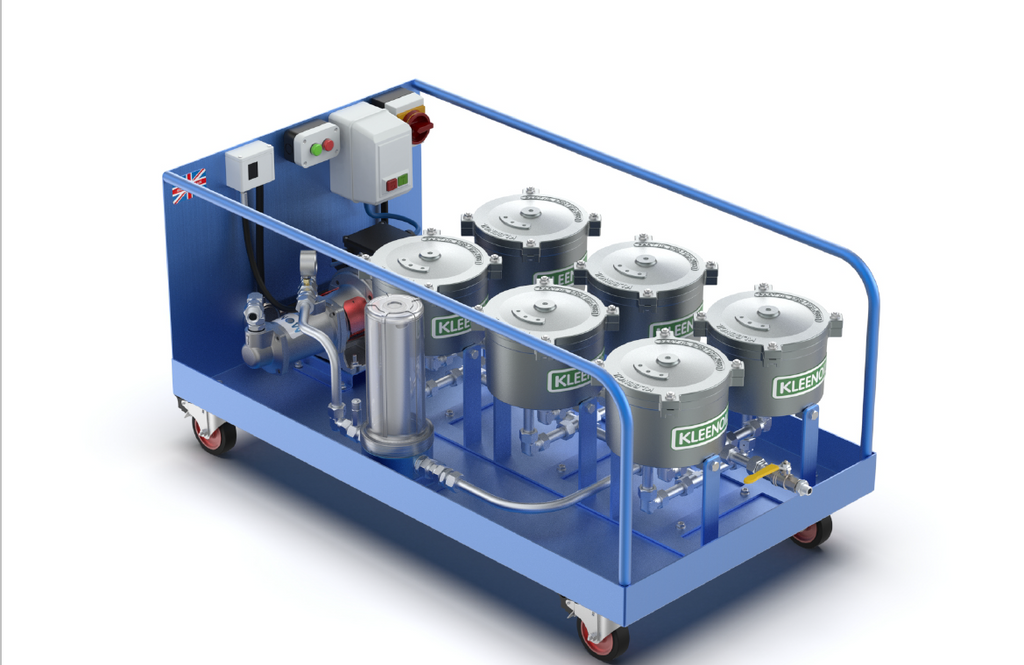

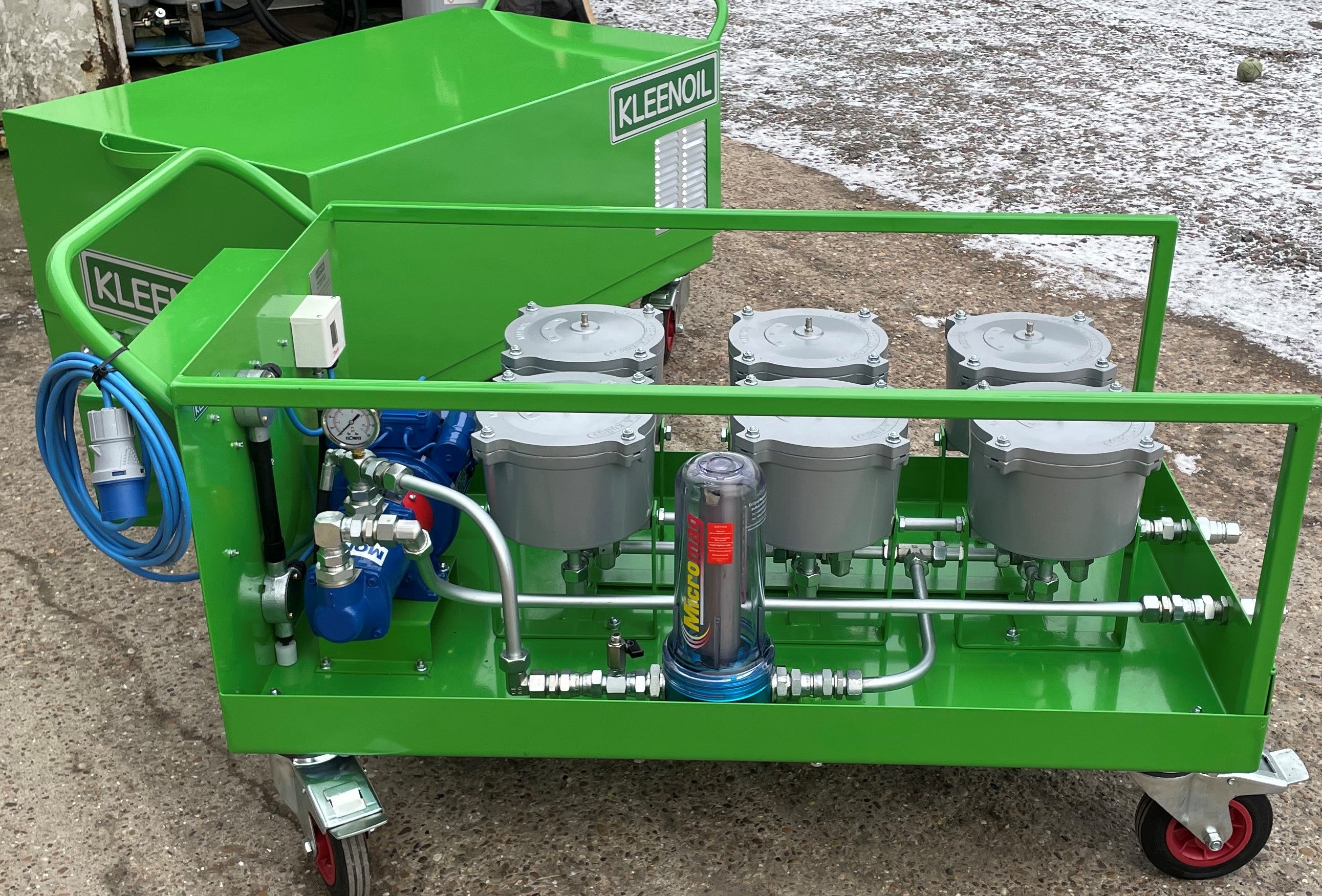

KLEENOIL MS6 Oil Filtration Work Station

Bunded Work Station Suitable for servicing or as a permanent connection to larger sized tanks to around 3000ltr or heavily contaminated.

• Height: 548 mm
• Width: 660 mm
• Depth: 1185 mm
• Weight: 150kg
• Water Retention: 4560ml
• Flow rate: 1500lph

Comes as standard with ‘240v progressive cavity pump/motor‘
(110v or 415v OPTIONAL EXTRA)

🔹 Product Overview

The KLEENOIL MS6 Bunded Workstation is a high-capacity, industrial-grade off-line filtration system engineered for large-scale oil cleaning and fluid management applications. Featuring a six-filter configuration, this powerful unit is designed to handle high volumes and heavily contaminated systems, delivering exceptional filtration performance in demanding environments.

Suitable for both permanent installation and mobile servicing, the MS6 is ideal for large tanks up to approximately 8000 litres, providing rapid and efficient oil conditioning while maintaining full operational safety through its integrated bunded design.

🔹 Performance & Capability

Operating as an off-line filtration system, the MS6 continuously circulates oil through six high-efficiency filter vessels, removing contamination without interrupting system operation.

Utilising KLEENOIL’s proven cellulose filtration technology, the system:

• Removes particulate contamination down to 3 microns
• Removes free and dissolved water contamination (up to 99.5%)
• Achieves high levels of oil cleanliness (typically ISO 4406 14/9)

With a total flow rate of approximately 1500 litres per hour, the MS6 enables rapid cleaning of large reservoirs and is particularly effective for reclaiming heavily fouled oils and restoring system cleanliness.

🔹 Key Applications

• Large hydraulic, gear & transmission system cleaning
• High-volume tank servicing (6000–8000L systems)
• Oil and diesel fuel transfer
• Decontamination of heavily polluted oils
• Reclaiming stored or unused oils prior to use
• Routine industrial maintenance and system flushing

🔹 Key Benefits

• High-capacity six-filter system for maximum throughput
• Rapid removal of contamination and water
• Extends oil life and reduces replacement frequency
• Reduces downtime and maintenance costs
• Ideal for large systems and heavy-duty applications
• Bunded design for environmental protection and spill control

🔹 System Features

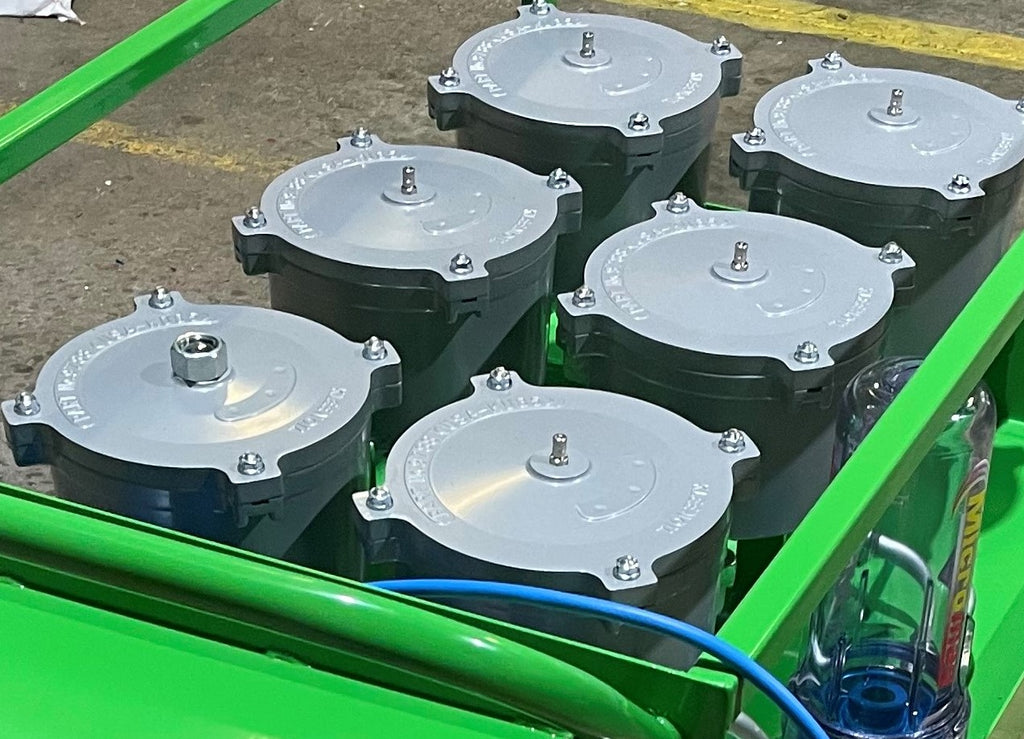

• Six filter vessel configuration for high-volume filtration
• Heavy-duty industrial frame with bunded base

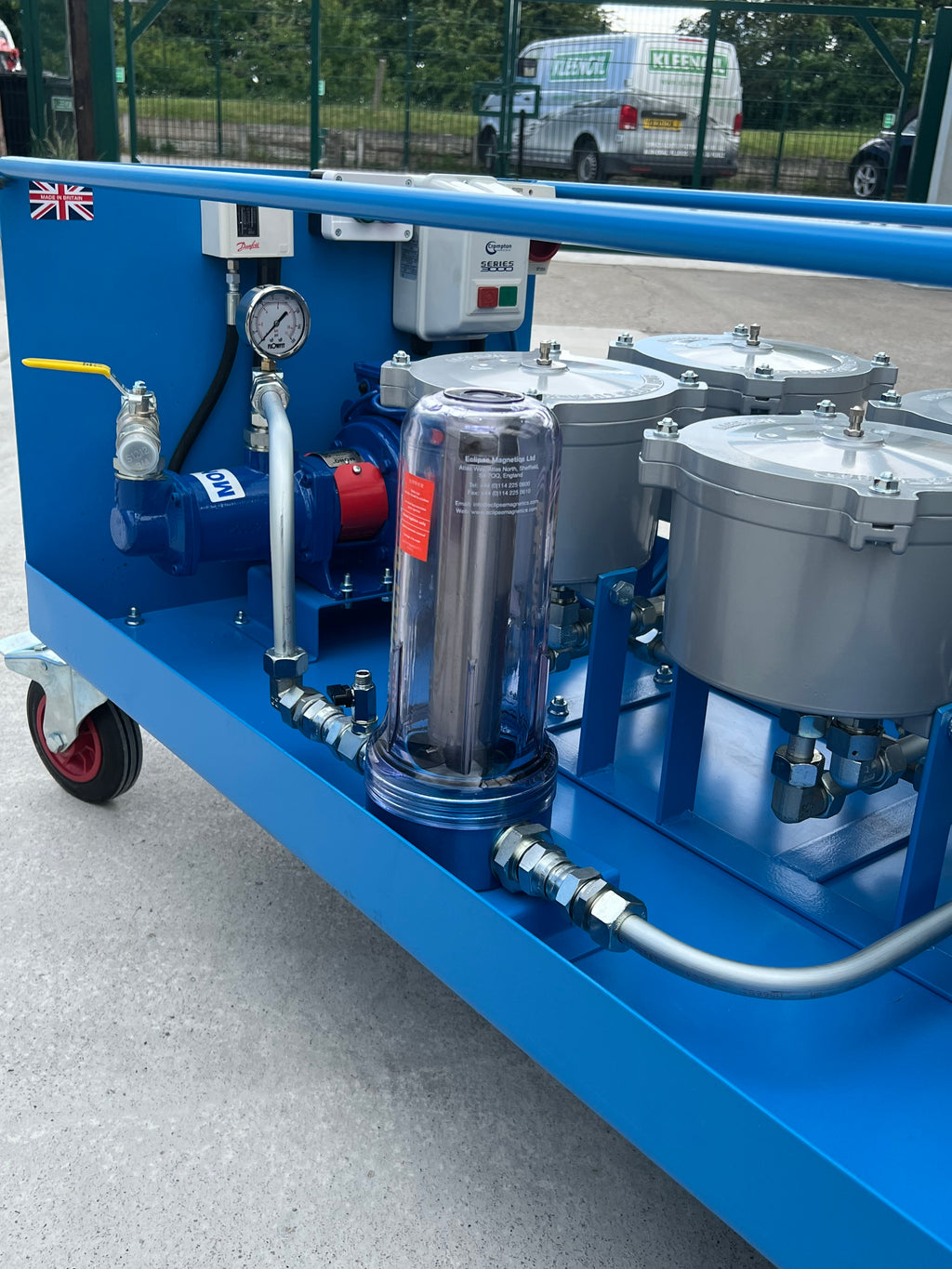

• High-performance Mono Progressive Cavity pump
• Pressure gauge, bypass valve, and overload protection
• Inlet and outlet sampling ports for oil condition monitoring
• Electrical isolator, ON/OFF controls, and status indicators
• Supplied with 3m suction and return hoses
• Designed for continuous operation in demanding environments

Built for industrial reliability, the MS6 combines high flow capacity with robust construction, ensuring consistent performance even in the most challenging applications.

🔹 Technical Highlights

• Filtration: 3 micron (cellulose media)
• Flow Rate: Approx. 1500 LPH
• Water Removal: High-efficiency absorption (~99.5%)
• Tank Capacity: Suitable for systems up to ~8000L
• Filter Configuration: Six cartridge system
• Pump Type: Mono Progressive Cavity (ML range)
• Construction: Heavy-duty industrial bunded frame

🔹 Quality & Build

Manufactured in the UK and built for heavy industrial use, the MS6 Bunded Workstation is supplied with full operating instructions, UKCA/CE compliance, and a 12-month warranty. Built to order with typical delivery of 5–10 working days.

KLEENOIL Manufacture - call us to discuss your application ; We not only adapt to suit your needs but offer a full support service to ensure you achieve the filtration cleanliness standard you need - and we can offer free trials to demonstrate the ability of the KLEENOIL System, - Tel U.K 44 (0) 1977 682810

🔹 How the Mobile Filtration System Works

KLEENOIL mobile filtration systems are designed for simple, on-site operation, allowing you to quickly clean oil or fuel in tanks, IBCs, or machinery sumps.

At site:

• Position the unit as close as possible to the tank, IBC, or system
• Connect to a suitable power source (typically 240V)
• Place the feed hose into the tank (or connect to an available port – standard ¾")
• Position the return hose back into the tank, ideally as far from the feed point as practical to promote circulation

Once both hoses are submerged:

• Turn the isolator switch to ON
• Press the green start button
• Allow the system to prime—the filtration process begins immediately

The unit will continuously circulate and clean the oil. Run the system until the desired level of cleanliness is achieved. For best results, it is recommended to take a visual before-and-after sample to monitor improvement.

🔹 Maintenance & Servicing

• Cartridge changes: Follow the standard replacement procedure (see “Filter Replacement” section above)
• Micromag: Periodically wipe clean during cartridge changes
• General operation: The system is designed to be low maintenance and trouble-free
