Oil Filtration Work Station

Bunded Work Station Suitable for servicing or as a permanent connection to large  sized tanks upward of 3000 ltr or heavily contaminated.

• Height: 548 mm
• Width: 660 mm
• Depth: 1468 mm
• Weight: 170kg
• Water Retention: 6240ml
• Flow rate: 2000lph

Comes with ‘240v progressive cavity pump/motor‘
(110v or 415v OPTIONAL EXTRA) contact us to discuss options.

🔹 Product Overview

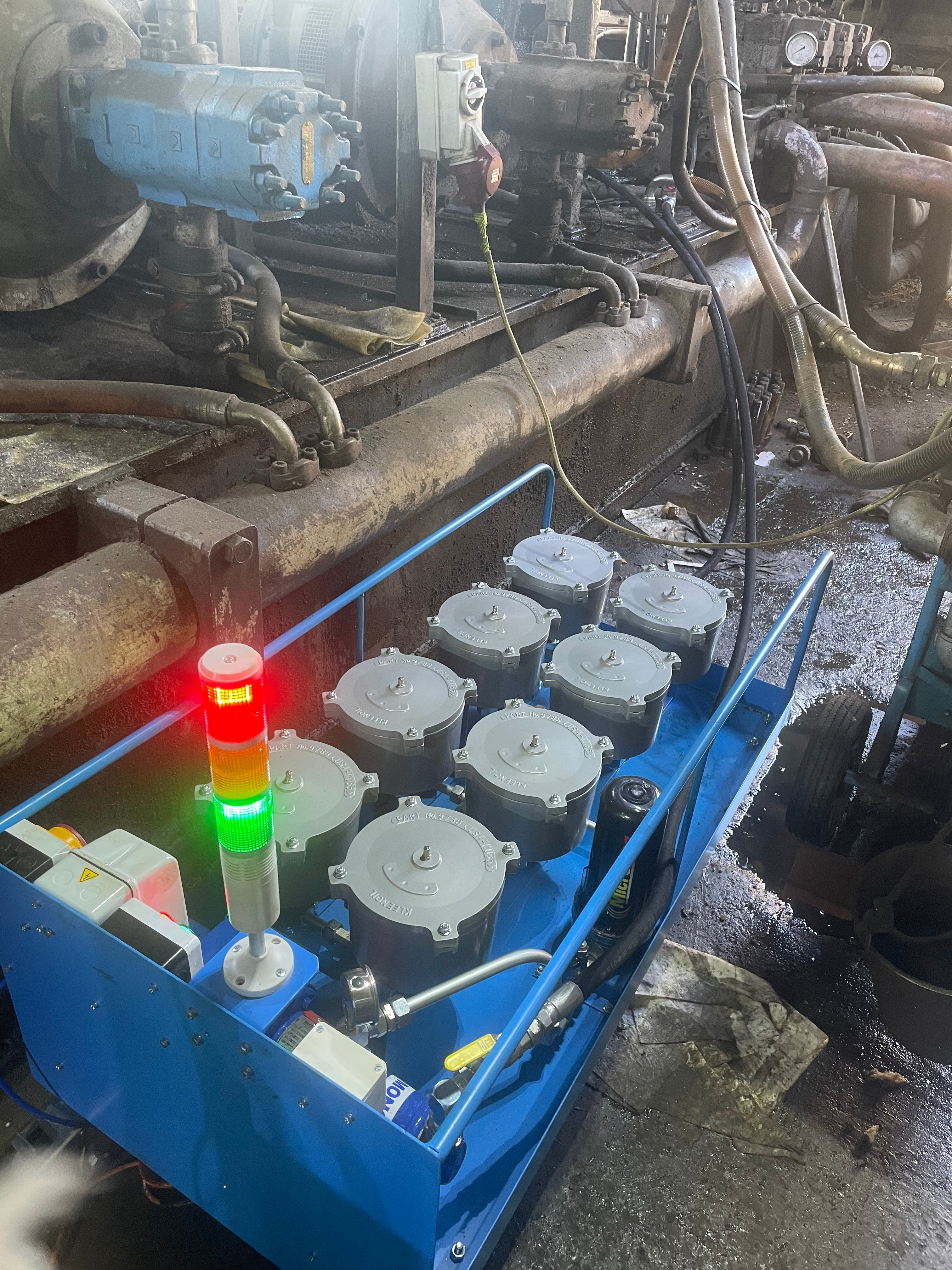

The KLEENOIL MS8 Bunded Workstation is a flagship, high-capacity off-line filtration system designed for large-scale industrial oil and fluid management. Featuring an eight-filter configuration, this powerful unit is built to handle very large tanks (8000L+) and heavily contaminated systems, delivering rapid, continuous filtration performance.

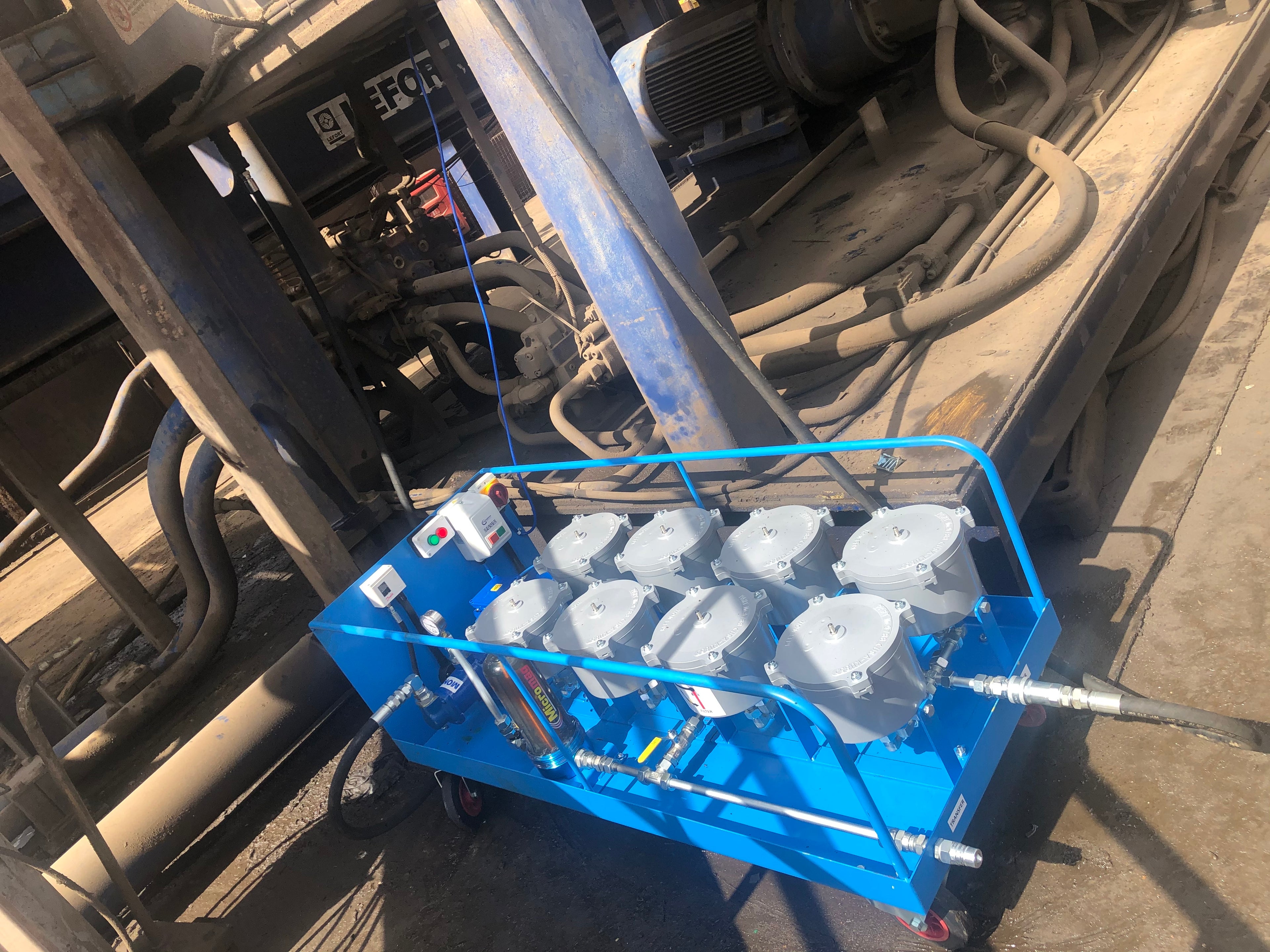

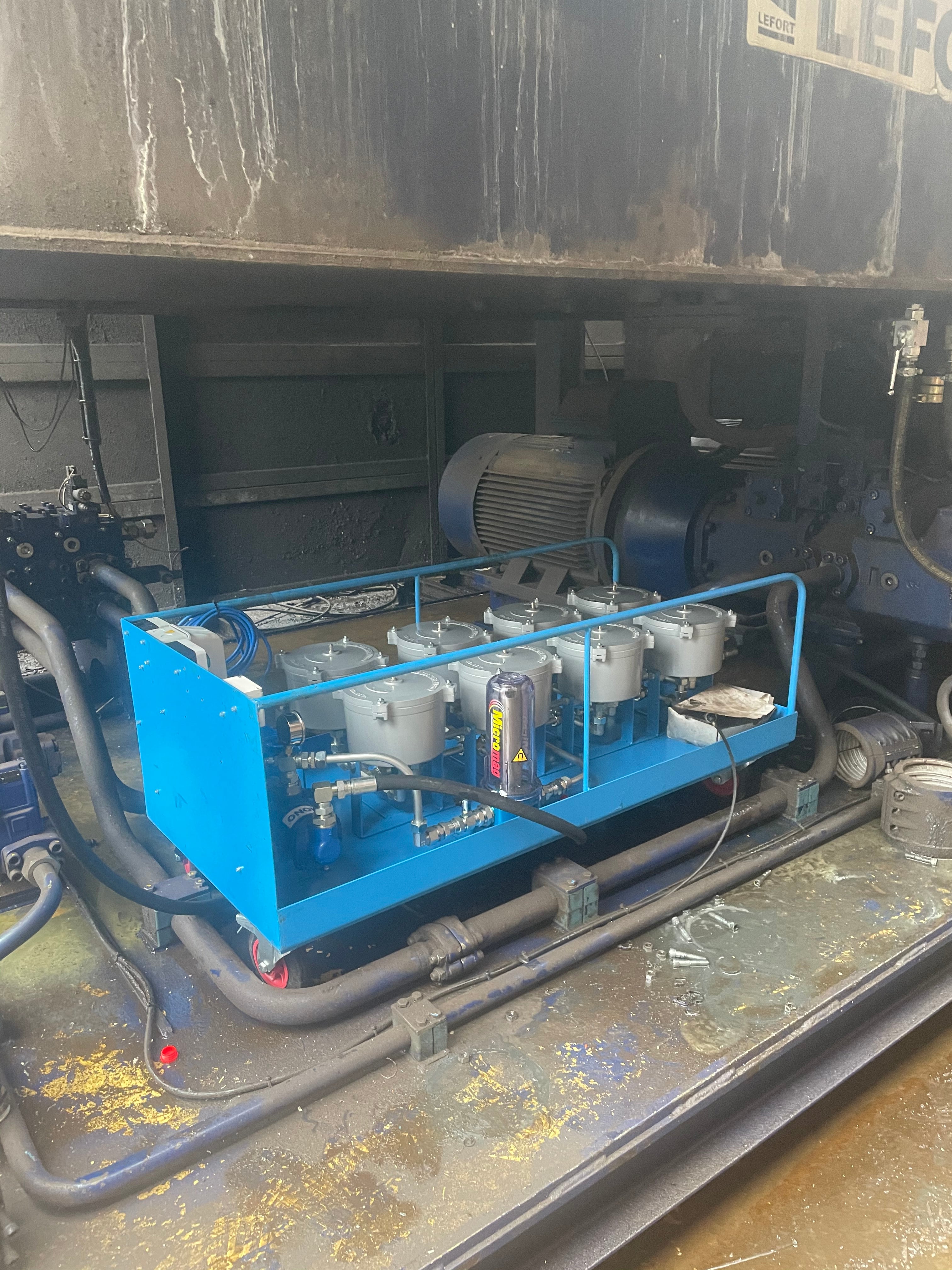

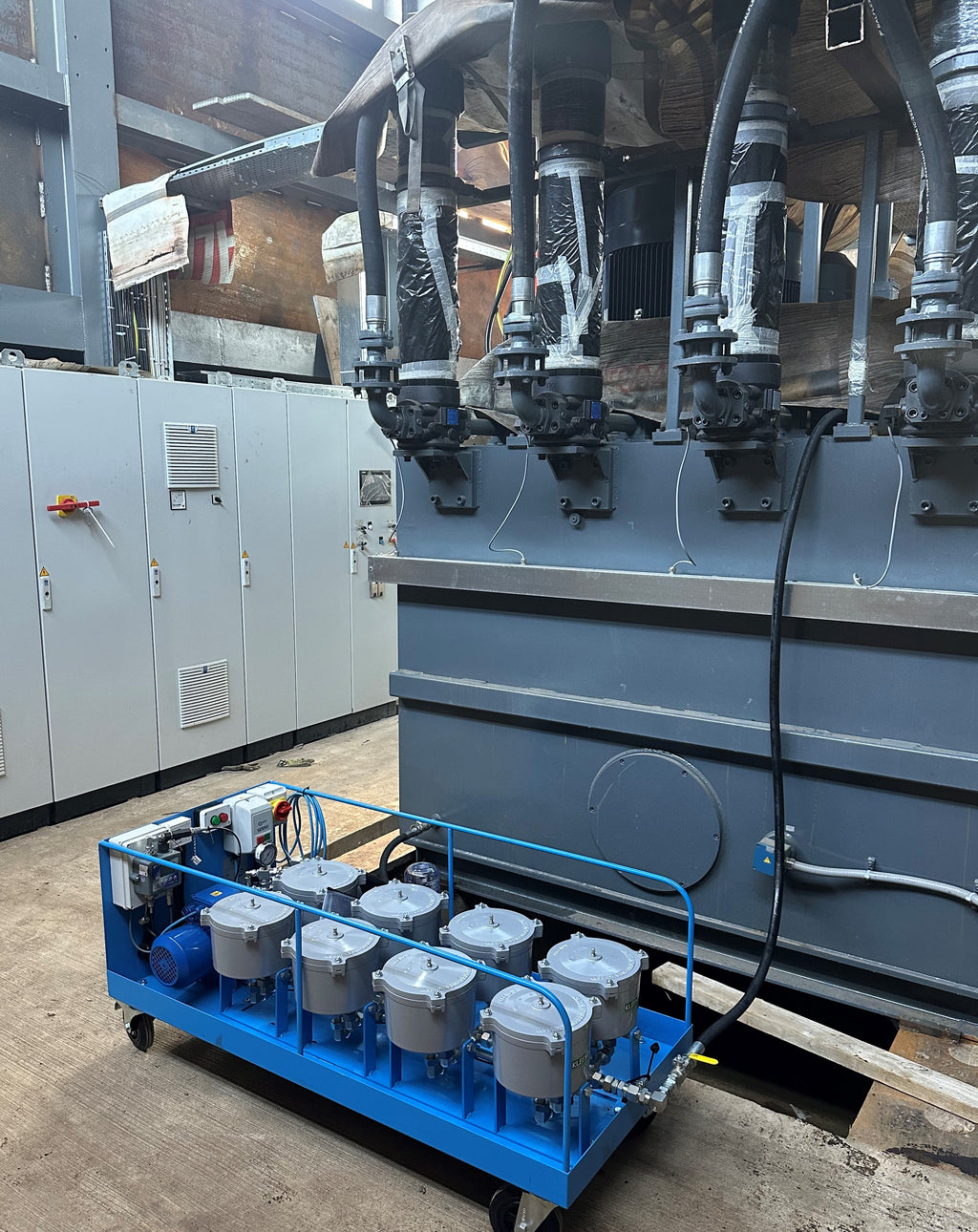

Engineered for both permanent installation and mobile servicing, the MS8 combines high throughput with a robust bunded design—ensuring safe, efficient operation in demanding environments.

🔹 Why You Need This System

In large systems, contamination builds quickly and can have significant operational and financial impact. Without effective filtration, oil degradation leads to increased wear, reduced efficiency, and costly downtime.

The MS8 is designed to tackle these challenges head-on—providing continuous, high-volume filtration to restore oil cleanliness, extend fluid life, and protect critical equipment across large-scale operations.

🔹 Performance & Capability

Operating as an off-line filtration system, the MS8 continuously circulates oil through eight high-efficiency filter vessels, removing contamination without interrupting system operation.

Using KLEENOIL’s proven filtration technology, the system:

• Removes particulate contamination down to 3 microns
• Removes up to 99.5% water contamination
• Achieves oil cleanliness levels of ISO 4406 14/9

With a high flow rate of approximately 2000 litres per hour, the MS8 delivers rapid cleaning of large tanks and is ideal for both maintenance and fluid recovery operations.

🔹 Key Applications

• Cleaning hydraulic, gear & transmission fluid reservoirs
• Servicing large tanks and systems (8000L+)
• Oil and diesel fuel transfer and conditioning
• Restoration of heavily contaminated oil systems
• Pre-treatment of unused oil to ISO 14/9 cleanliness
• Routine industrial maintenance and servicing

🔹 Key Benefits

• Eight-filter system for maximum throughput and efficiency
• Rapid removal of contamination and water
• Extends oil life and reduces replacement frequency
• Reduces downtime and maintenance costs
• Ideal for large-scale and heavy-duty applications
• Bunded design for environmental protection and spill containment

🔹 System Features

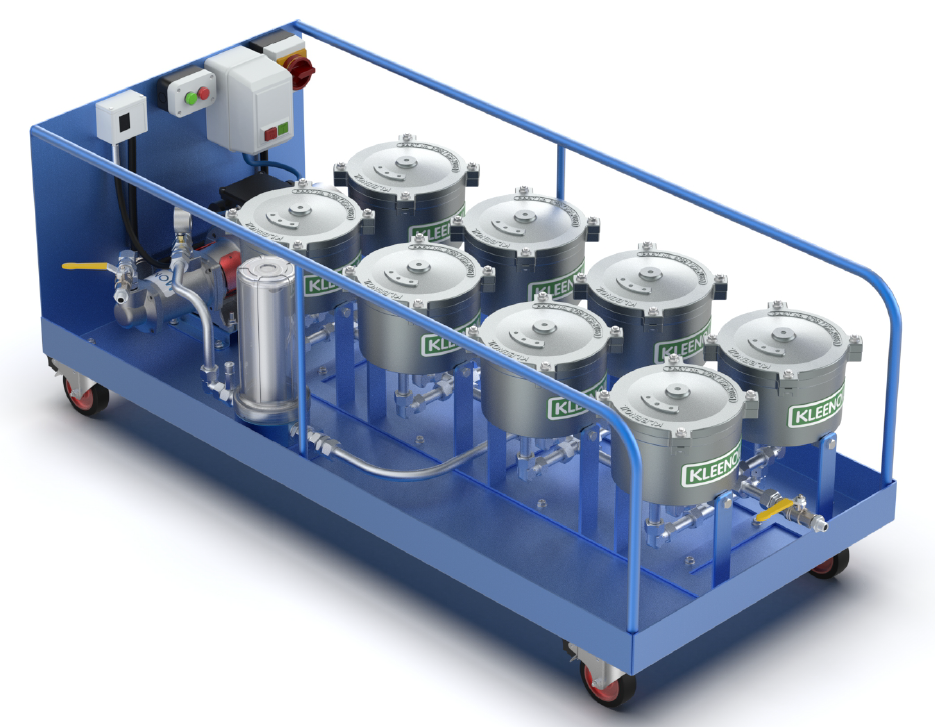

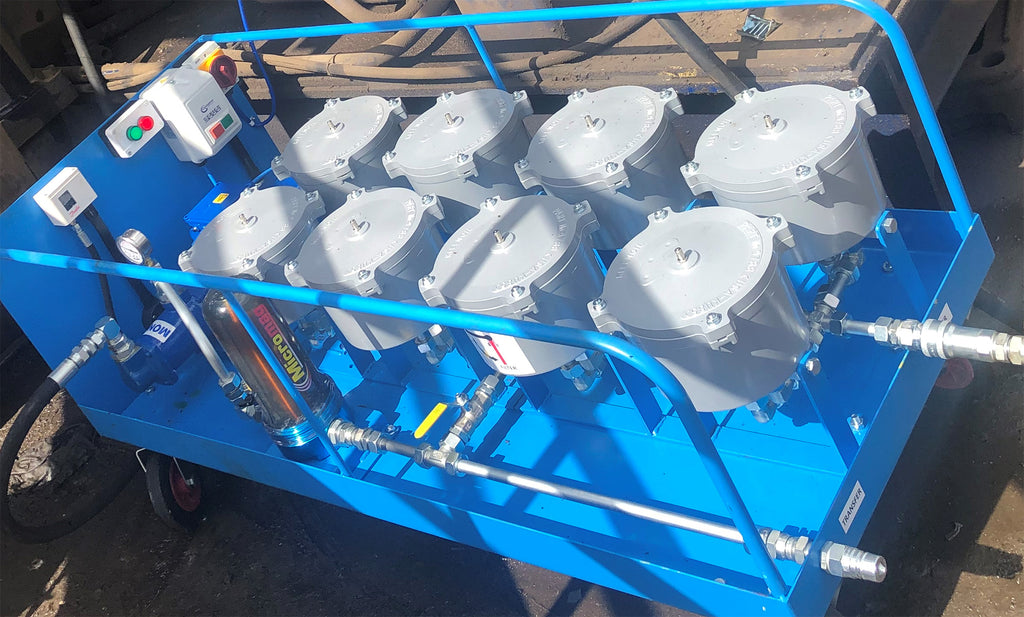

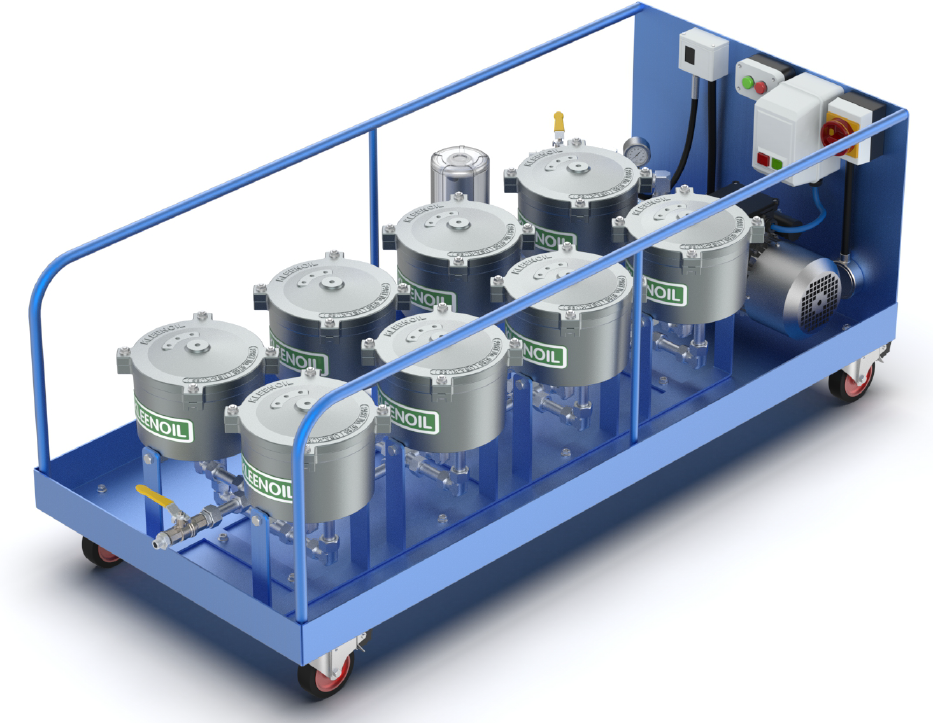

• Eight filter vessel configuration for high-volume filtration
• Heavy-duty bunded frame for safe fluid containment
• High-performance Mono Progressive Cavity pump (ML range)
• Electrical control system with isolator, ON/OFF switch, and status indicators
• Integrated bypass valve and overload protection
• Inlet and outlet sampling points for oil condition monitoring
• Pressure gauge for real-time system monitoring
• Supplied with suction and return hoses

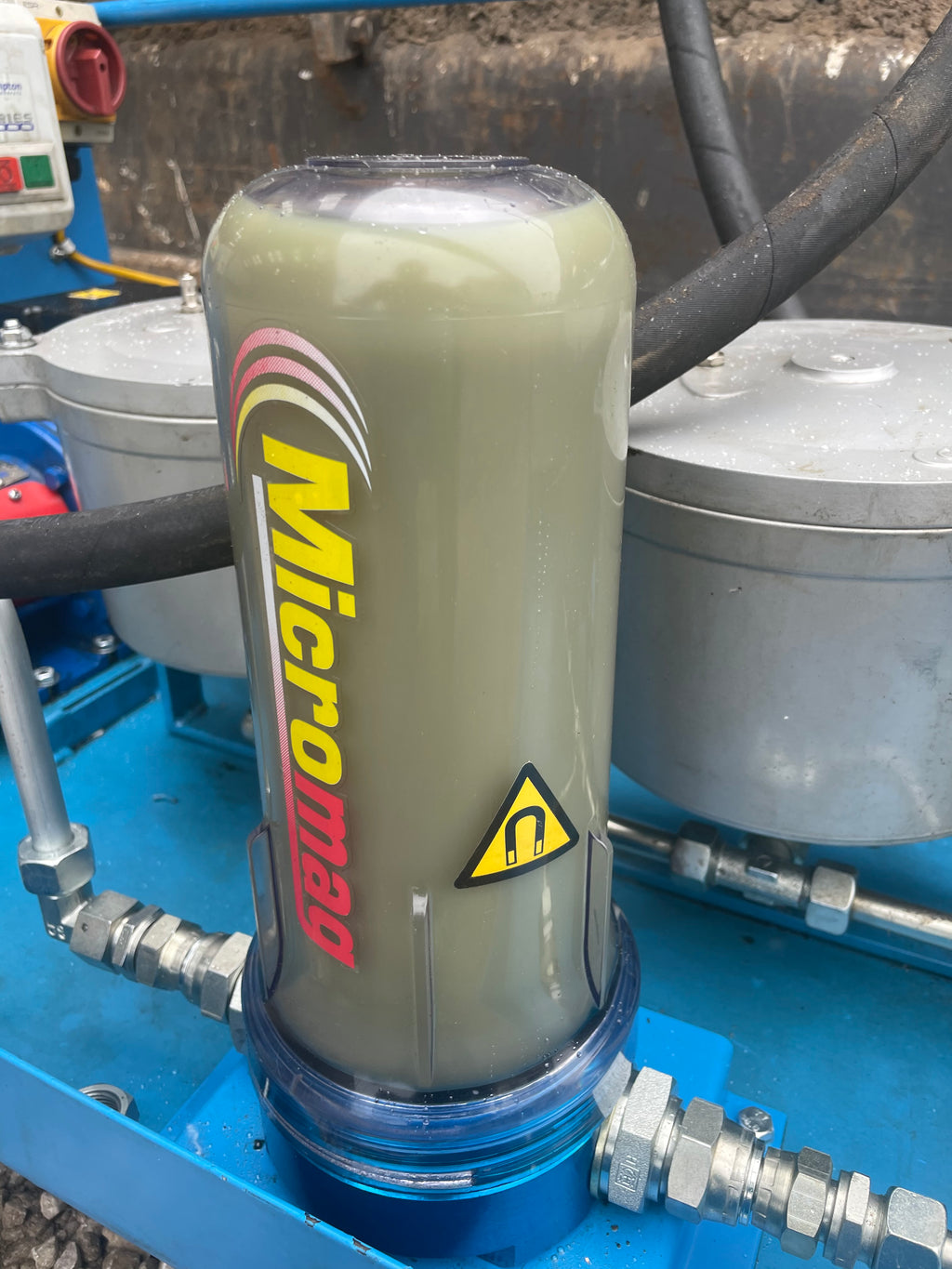

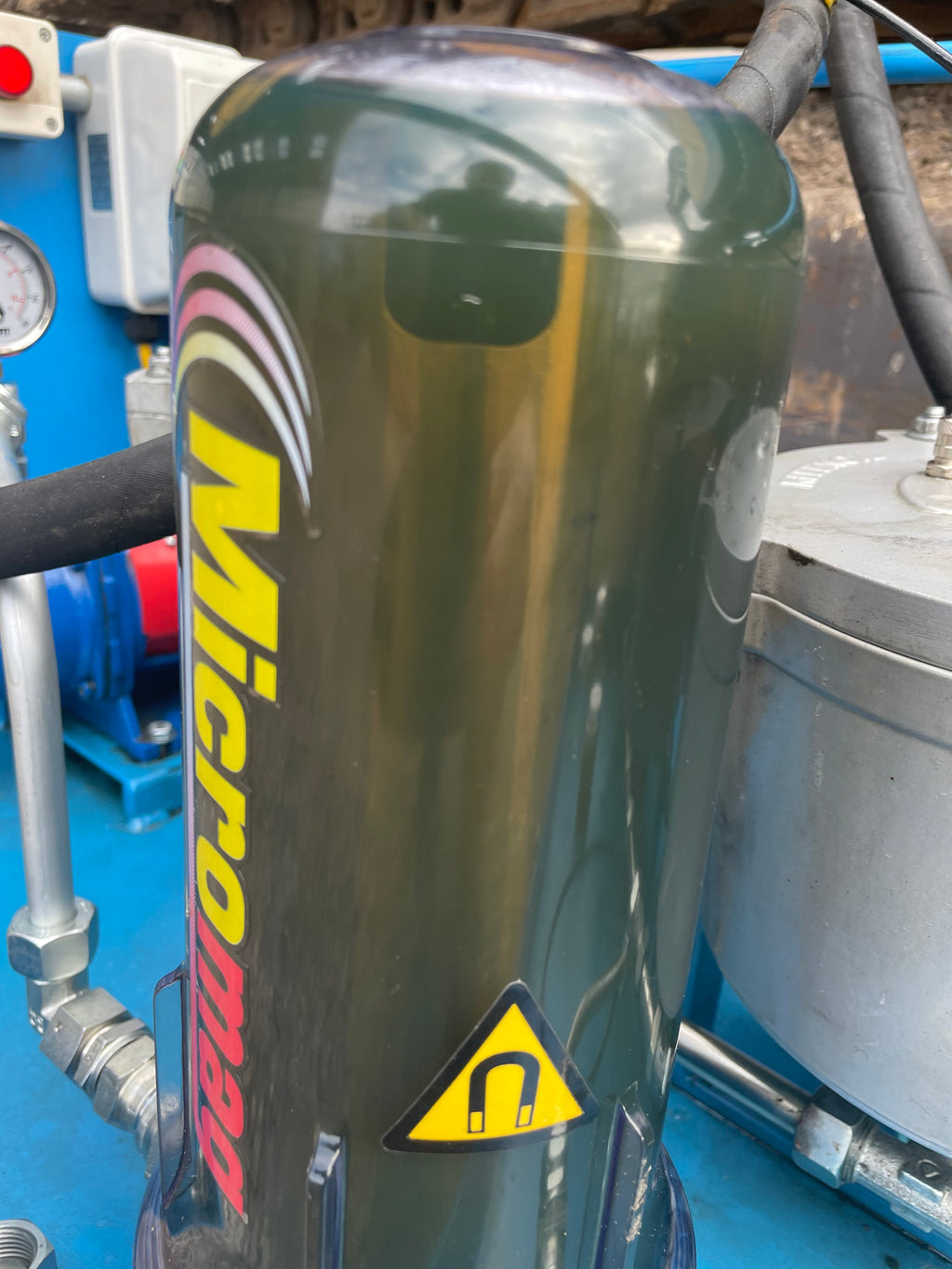

• Optional Micromag module for sub-micron ferrous particle removal

Built for continuous industrial use, the MS8 offers durability, safety, and high-performance filtration in one complete system.

🔹 Technical Highlights

• Filtration: 3 micron (cellulose media)
• Flow Rate: Approx. 2000 LPH
• Water Removal: Up to 99.5%
• Water Capacity: Approx. 6240ml (system total)
• Tank Capacity: Suitable for systems 8000L+
• Filter Configuration: Eight cartridge system
• Pump Type: Mono Progressive Cavity
• Weight: Approx. 170 kg

🔹 How the System Works

KLEENOIL mobile and workstation systems are designed for simple, on-site operation:

• Position the unit close to the tank or system
• Connect to a suitable power source (typically 240V)
• Place the suction hose into the oil source
• Position the return hose back into the tank (ideally away from the feed point)
• Switch on and allow the system to prime

Filtration begins immediately and continues until the required cleanliness level is achieved. A before-and-after oil sample is recommended to confirm results.

🔹 Maintenance & Servicing

• Cartridge replacement: Simple bolt-down lid system (see filter replacement instructions)
• Micromag (if fitted): Periodic wipe clean during servicing
• General operation: Designed for low maintenance and reliable performance

🔹 Support & Application Advice

KLEENOIL UK provides a complete support service, working with you to identify the most effective filtration solution for your application. Our goal is simple—deliver consistently clean oil and long-term system performance.

Speak to our team directly on +44 (0) 1977 682810 for tailored advice.

Buy direct from the manufacturer for the best pricing and service. contact sales@kleenoilco.uk
