🔹 Technical Detail

Suitable for engines of up to 40 litres oil

• Max input pressure 2-6 Bar
• Lid torque pressure 18ft lbs. 3 bolt seal
• Height: 165mm
• Diameter: 190mm
• Weight: 3.75k
• Water Retention: 400ml
• Supplied with 1x HDFC1878kf50 Replacement Filter Cartridge

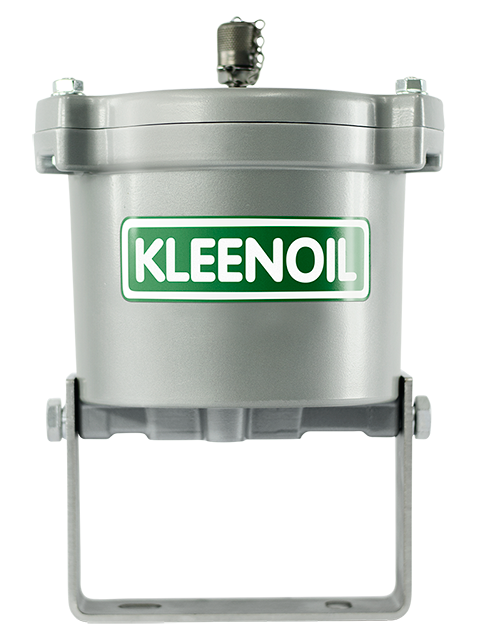

• Complete with bracket mounting kit


🔹 Why You Need This System

Oil contamination is one of the leading causes of wear, inefficiency, and premature failure in engines and hydraulic systems. Even new oil is often not clean enough for modern tolerances, and once in use, contamination levels increase rapidly.

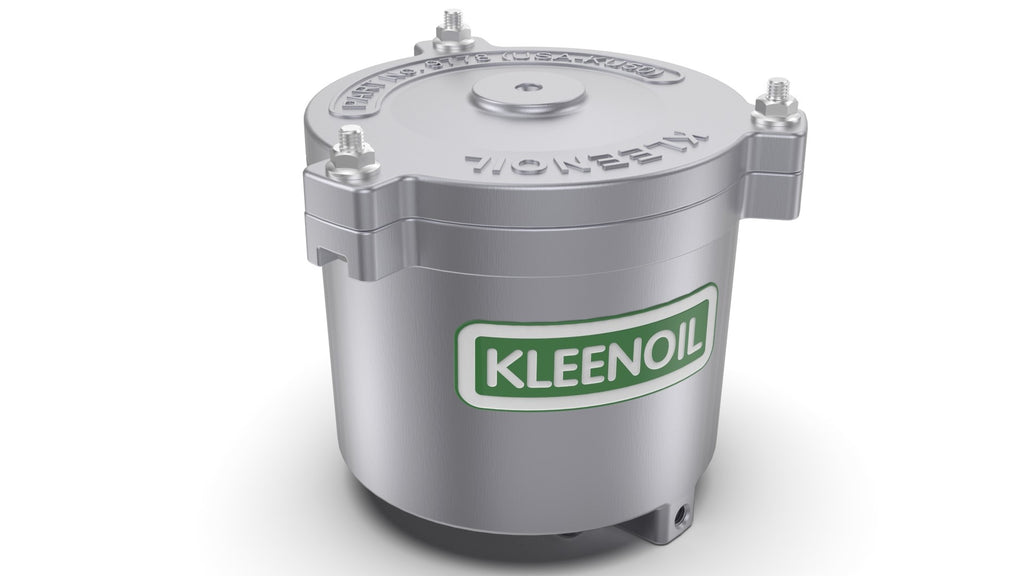

The KLEENOIL HDU9778KU50 By-Pass Filtration Unit is designed to continuously remove particles and water while your system is running—maintaining oil in near “as new” condition. The result is significantly extended oil life, reduced maintenance, and improved equipment reliability.

🔹 Where It’s Used

The HDU9778KU50 is ideal for smaller to mid-range systems and is typically applied to:

• Engines (up to approx. 40 litre sump capacity)
• Hydraulic systems and power packs
• Gearboxes and transmissions
• Mobile plant and construction equipment
• Generators and compressors

It is widely used across industries where maintaining clean oil is critical to performance and longevity.

🔹 How It Works

The unit operates as a bypass filtration system, meaning it continuously cleans a small proportion of oil without affecting the main system operation.

• Oil is taken from a low-pressure point in the system
• It passes slowly through a high-efficiency cellulose filter
• Contaminants and water are removed
• Clean oil is returned back to the system

This controlled process enables filtration down to 3 microns absolute and removal of up to 99.9% water, significantly improving oil condition and extending service intervals.

🔹 Key Benefits

• Removes particles down to 3 micron absolute
• Removes 99.9% water (free, emulsified, dissolved)
• Extends oil life by up to 5x (engines) and 10x (hydraulics)
• Reduces wear, downtime, and maintenance costs
• Improves overall system efficiency and reliability
• Suitable for oil and diesel fuel applications

🔹 Installation (Simple & Non-Intrusive)

The HDU9778KU50 is designed for straightforward installation into existing systems with minimal disruption.

The system is installed using:

• A pressure feed (inlet) from a low-pressure point
• A low-pressure return (outlet) back to the tank or sump

Typical setup:

1. Feed Line (Pressure Side)

• Take from an oil gallery, auxiliary port, or low-pressure hydraulic point

2. Return Line (Low Pressure)

• Return to tank, sump, or filler point
• Ideally above oil level for visibility of flow

3. Mounting

• Install vertically using the supplied bracket
• Position close to the system to keep hose runs short
• Ensure easy access for servicing

Important: Always use a low-pressure feed. For hydraulic systems, a pressure reducing valve (PRV) may be required depending on the application.

🔹 Technical Highlights

• Filtration: 3 micron absolute
• Flow Rate: 120–250 L/h
• Water Capacity: Approx. 400ml per cartridge
• Operating Temperature: -20°C to +120°C
• Construction: Aluminium LM6 housing
• System Type: Continuous bypass filtration
• Replacement Filter: HDFC1878KF50

🔹 Support & Application Advice

KLEENOIL UK provides a complete support service, working with you to identify the most effective filtration solution for your application. Our goal is simple—deliver consistently clean oil and long-term system performance.

Speak to our team directly on +44 (0) 1977 682810 for tailored advice.
