• Suitable for systems of up to 1360 litres oil
• Max input pressure 350Bar
• Lid torque pressure 18ft lbs. 4 bolt seal
• Height: 165mm
• Diameter: 220mm
• Weight: 9.45k
• Water Retention: 780ml
• Supplied with 1x SDFC1888kf85 Replacement Filter Cartridge
• Complete with bracket mounting kit

Product Performance & Technical Overview

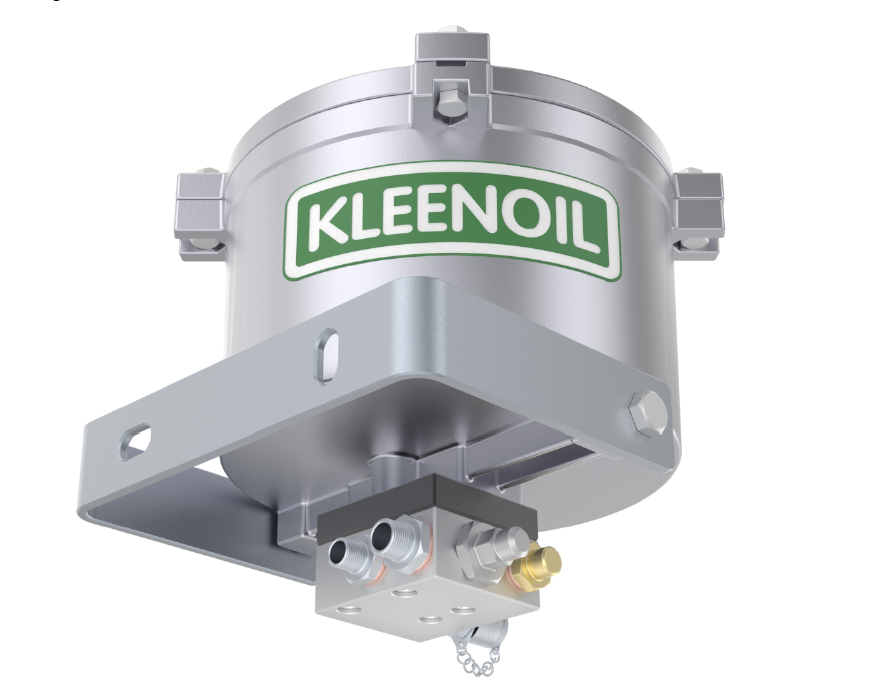

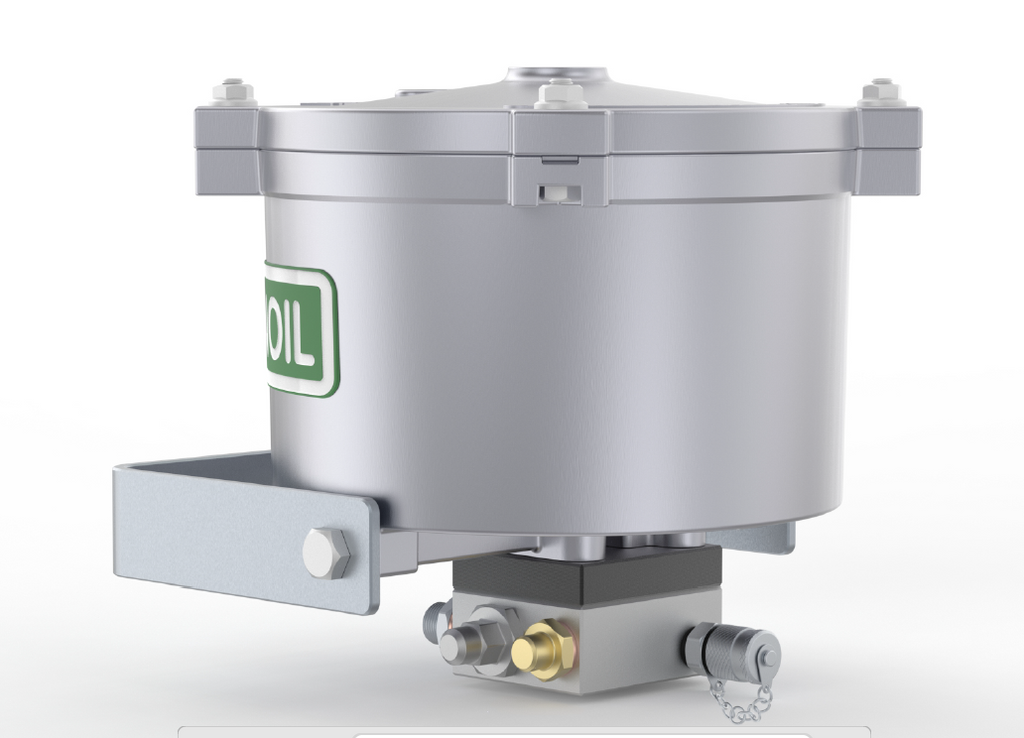

The KLEENOIL SDU9788KU85HYD By-Pass Hydraulic Unit is engineered to deliver continuous, high-efficiency oil conditioning without interfering with system operation. Designed for integration into pressurised hydraulic and lubrication systems, the unit operates via a controlled bypass circuit, ensuring oil is maintained in “as new” condition at all times.

Utilising a precision pressure regulation valve (PRV) assembly, the system safely reduces incoming pressure from up to 350 bar to an optimal filtration range, protecting both the filter media and the host system while maintaining stable operation.

Oil is continuously drawn from the system at a regulated low flow rate (approximately 4 litres per minute), allowing for ultra-fine filtration without impacting mainline pressure or performance. This slow, controlled process enables the removal of contaminants down to 3 micron absolute, along with up to 99.9% water removal, including free, emulsified, and dissolved moisture.

The result is a highly effective, non-intrusive filtration solution that significantly improves oil cleanliness, reduces wear, and extends machinery service intervals.

🔹 How It Works

The system operates as a bypass filtration loop:

• A small volume of oil is diverted from the main hydraulic line
• Pressure is reduced and stabilised via the integrated PRV block
• Oil passes slowly through the high-efficiency filter element
• Cleaned oil is returned to the tank or system reservoir

This controlled process ensures continuous filtration without disrupting system pressures or flow, making it ideal for live operating environments.

🔹 Key Benefits

• Extends oil life by up to 10x in hydraulic systems
• Removes ultra-fine particles and up to 99.9% water contamination
• Reduces downtime, wear, and overall maintenance costs
• Maintains system cleanliness without interrupting operation
• Suitable for hydraulic systems, gearboxes, and compressors
• Compatible with mineral, synthetic, and biodegradable oils

🔹 Technical Highlights

• Filtration: 3 micron absolute (cellulose media)
• Flow Rate: Approx. 120–250 L/h
• Operating Temperature: -20°C to +120°C
• Max Input Pressure: Up to 350 bar (pre-PRV)
• Construction: High-grade aluminium (LM6)
• System Integration: Bypass or offline loop installation
• Replacement Element: SDFC1888KF85

🔹 Quality & Compliance

Manufactured in the UK to ISO 9001:2015 standards and tested in accordance with ISO 16889 and ISO 4572, the SDU9788KU85HYD unit delivers proven, reliable performance in demanding industrial environments.
